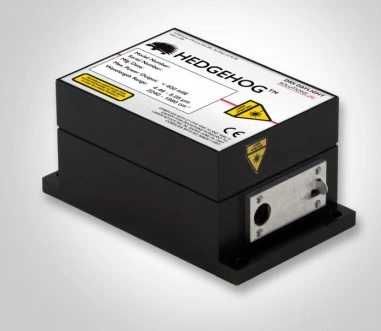

HHG-LT COMPACT, RAPID-SCAN, TUNABLE MID-IR LASER
Description
Molecular spectroscopy applications benefit from rapid, high Signal-to-Noise Ratio data acquisition. This demands fastscan mid-IR lasers delivering high-quality light. Until now, high tuning speed has come with compromises. The new Hedgehog from DRS Daylight Solutions changes this. For the first time, fast tuning and high-fidelity output is available from a compact, robust mid-IR laser. Hedgehog is built on Daylight’s field-proven Quantum Cascade Laser (QCL) technology. Available center wavelengths span the mid-IR spectrum from < 4 μm to >13 μm, and Hedgehog can provide pulsed or CW output. Users can select from three model types (HHG, HHGUT, or HHG-LT) depending on their application power and tuning range requirements. All models include a GUI option for ultra-quiet CW operation, high wavelength repeatability, and multiple tuning modes.
HHG-LT COMPACT, RAPID-SCAN, TUNABLE MID-IR LASER
Specifications |
|
|---|---|
| Center Wavelegth: | 4000 nm |
| Tuning Range: | 3952.57-4048.58nm |
| Sweep Speed: | N/A nm/sec |
| Power: | 21.76 dBm |
Features
- Tuning slew rates to > 30,000 cm-1/s
- Ultra-low noise mode (CW RIN as low as -140 dBc/Hz)
- High wavelength accuracy, precision and repeatability
- Available center wavelengths: < 4 μm to >13 μm
- Compact head ideal for OEM integration or lab use
- New Hedgehog-LT: greater utility than DFBs
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2019
Frequently Asked Questions
The available center wavelengths of the Hedgehog laser span the mid-IR spectrum from < 4 μm to >13 μm.
Users can select from three model types (HHG, HHGUT, or HHG-LT) depending on their application power and tuning range requirements.
The compact head of the Hedgehog laser is ideal for OEM integration or lab use.
The Hedgehog laser is used for molecular spectroscopy applications that require rapid, high Signal-to-Noise Ratio data acquisition.
The tuning range of the Hedgehog laser is up to 200 cm-1.
