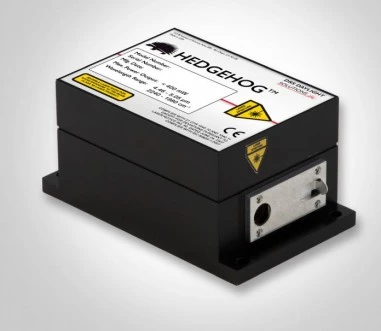

HHG COMPACT, RAPID-SCAN, TUNABLE MID-IR LASER
Description
Molecular spectroscopy applications benefit from rapid, high Signal-to-Noise Ratio data acquisition. This demands fastscan mid-IR lasers delivering high-quality light. Until now, high tuning speed has come with compromises. The new Hedgehog from DRS Daylight Solutions changes this. For the first time, fast tuning and high-fidelity output is available from a compact, robust mid-IR laser. Hedgehog is built on Daylight’s field-proven Quantum Cascade Laser (QCL) technology. Available center wavelengths span the mid-IR spectrum from < 4 μm to >13 μm, and Hedgehog can provide pulsed or CW output. Users can select from three model types (HHG, HHGUT, or HHG-LT) depending on their application power and tuning range requirements. All models include a GUI option for ultra-quiet CW operation, high wavelength repeatability, and multiple tuning modes.
HHG COMPACT, RAPID-SCAN, TUNABLE MID-IR LASER
Specifications |
|
|---|---|
| Center Wavelegth: | 4000 nm |
| Tuning Range: | 3703.70-4347.83nm |
| Sweep Speed: | N/A nm/sec |
| Power: | 27 dBm |
Features
- Tuning slew rates to > 30,000 cm-1/s
- Ultra-low noise mode (CW RIN as low as -140 dBc/Hz)
- High wavelength accuracy, precision and repeatability
- Available center wavelengths: < 4 μm to >13 μm
- Compact head ideal for OEM integration or lab use
- New Hedgehog-LT: greater utility than DFBs
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2019
Frequently Asked Questions
Users can select from three model types (HHG, HHGUT, or HHG-LT) depending on their application power and tuning range requirements.
The compact head of the Hedgehog laser is ideal for OEM integration or lab use.
All models include a GUI option for ultra-quiet CW operation, high wavelength repeatability, and multiple tuning modes.
The Hedgehog laser is used for molecular spectroscopy applications that require rapid, high Signal-to-Noise Ratio data acquisition.
The tuning range of the Hedgehog laser can span the mid-IR spectrum from < 4 μm to >13 μm, depending on the model type selected.
