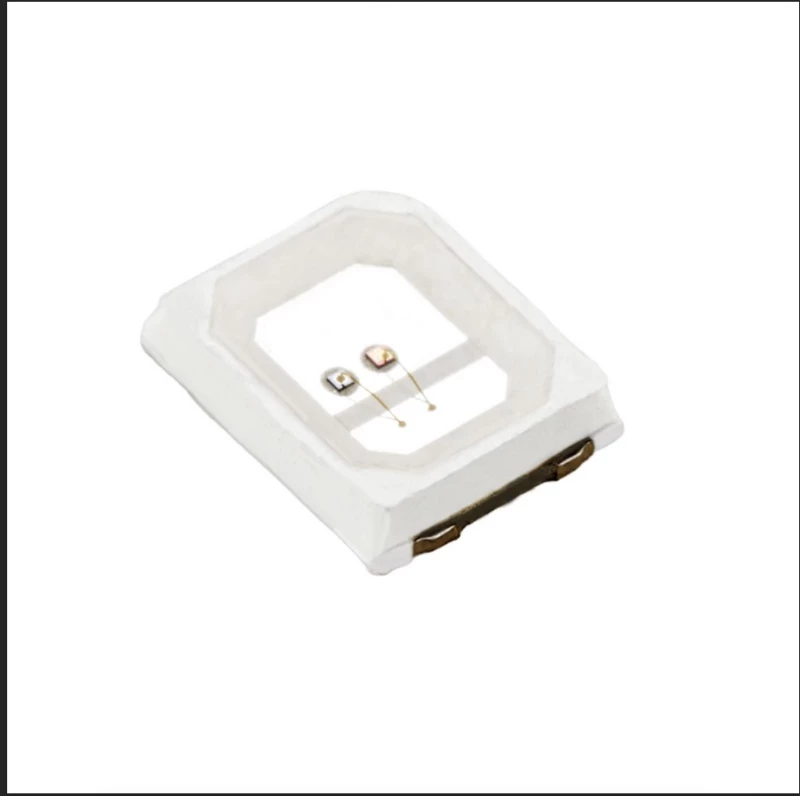

940nm Laser Diode, VCSEL, SMD/SMT, 940nm/5mW/1616-PD, Infrared Light Laser Therapy, LLLT, PBMT(Custom Available）
Description
VCSEL is a new generation of laser devices, which is more suitable for processing compared to EEL lasers. VCSEL can be directly mounted using conventional surface mount machines. VCSEL can be packaged in different ways, such as 5730,2835,1616 or customized according to customer requirements.
The VCSEL spot is circular, making power easier to control, and our company can provide customized services for customers from development to production.
As one of the few factories with manufacturing capabilities, we can provide customized designs for customers, from research and development to mass production. Our goal has always been to create unique and personalized products for our customers.
940nm Laser Diode, VCSEL, SMD/SMT, 940nm/5mW/1616-PD, Infrared Light Laser Therapy, LLLT, PBMT(Custom Available）
Specifications |
|
|---|---|
| Wavelength: | 940 nm |
| Optical Power (CW): | 0.005 W |
| Threshold Current: | 0.9 mA |
| Viewing Angle: | 21 ° |
| Typical Optical Power: | 8 mW |
| Output Power: | 6-10 mW |
| ESD(HBM): | 8000 V |
Features
- A: More easily processed, reducing production costs.
- B: Spot, angle, and power can be controlled.
- C: There are various packaging forms, and multiple wavelengths can be packaged in one.
- D: Customization of 655-1064nm is acceptable.
- E: Compatible with SMT
Applications
- Medical, consumer electronics, wearable devices.
- Oximeters, hair generators, massagers, LLLT, PBM, PBMT, Red Light Laser Therapy, robots, and distance measuring devices.
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2024
Frequently Asked Questions
Yes, we are DERAY Optoelectronics Co., Ltd. in China, and we complete everything from die production to packaging in our factory.
Yes, we accept customization: 1. From 655nm to 1064nm wavelength; 2. From 0.002mW to 10W, please contact us directly for more power; 3. Packaging form: Accepting various standard SMD packaging.
VCSEL is surface mount soldering (SMT), while EEL is a plug-in, making VCSEL easier to solder, significantly improving yield, lower soldering costs, and overall lower processing costs. VCSEL, due to its small size, can be designed in smaller and more diverse forms.
We accept customization for up to 5 different wavelengths. Please contact us directly.
