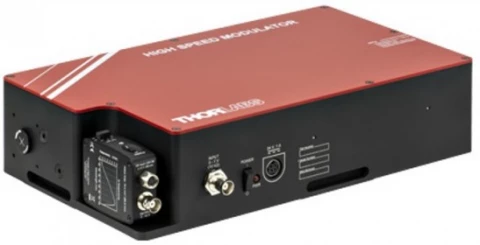

OM6N Dispersion-Free Fast Laser Amplitude Modulator
Description
Thorlabs' High-Speed Optical Modulators use deformable mirror technology instead of Pockels cells or acousto-optic modulators to provide high-speed intensity modulation and beam attenuation. The all-reflective design incorporates gold-coated MEMS mirrors that are polarization independent and introduce minimal (<100 fs2) dispersion. This unidirectional device accepts a collimated, 1 to 2 mm (1/e2) diameter input beam with <5 W optical power and is available with either standard (>250:1) or high (>2500:1) contrast ratios.
For the most up to date information, please visit Thorlabs.com.
OM6N Dispersion-Free Fast Laser Amplitude Modulator
Specifications |
|
|---|---|
| Spectral Range: | 700 - 1100 nm |
| Input Polarization: | Any |
| Rise/Fall Time: | <2 us |
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2020
Frequently Asked Questions
The High-Speed Optical Modulator uses deformable mirror technology.
The MEMS mirrors used in the modulator introduce minimal (<100 fs2) dispersion.
The modulator accepts a collimated, 1 to 2 mm (1/e2) diameter input beam.
The modulator is available with either standard (>250:1) or high (>2500:1) contrast ratios.
The modulator has an operating range of 700 - 1100 nm.
