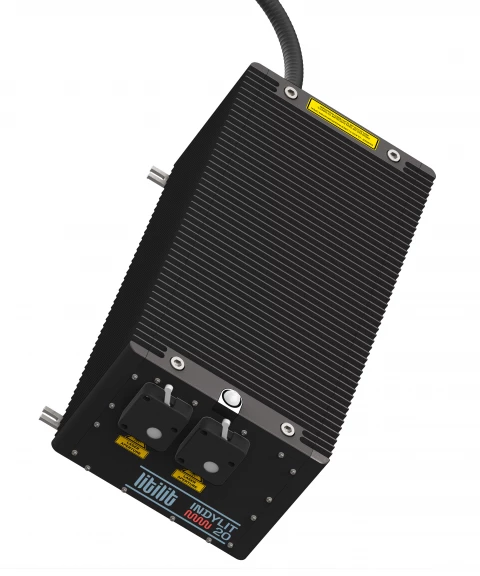

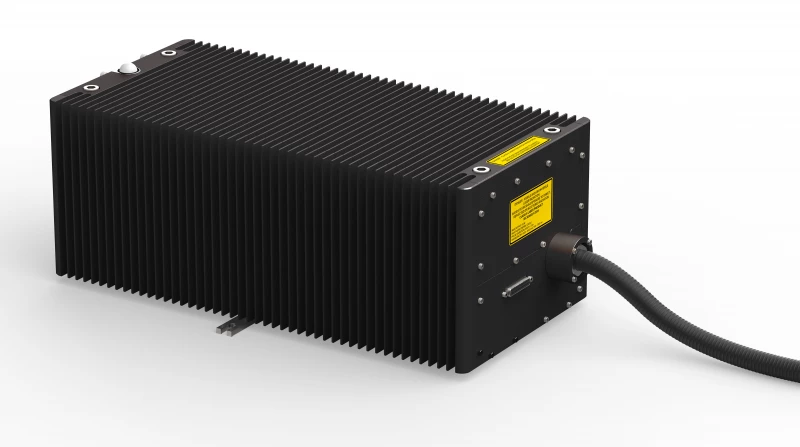

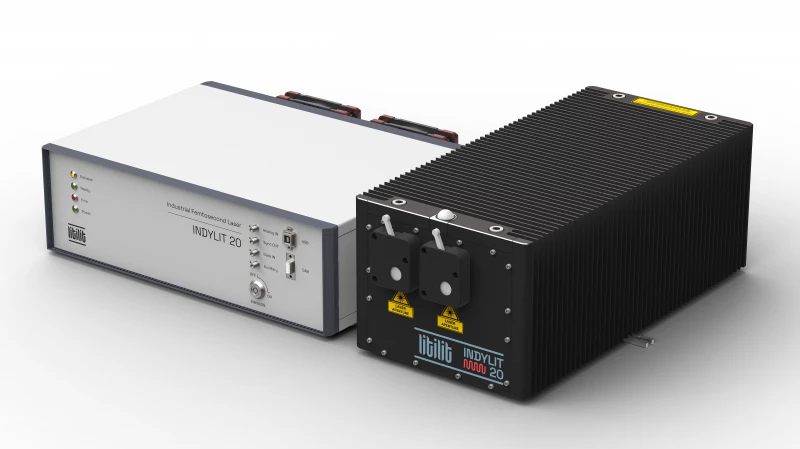

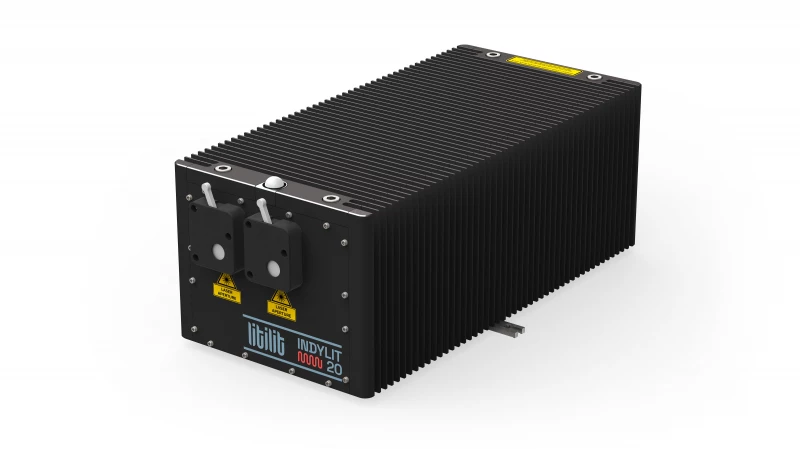

INDYLIT 20 SH Industrial femtosecond laser
Description
The Indylit 20 is the highest average power and most efficient passively air-cooled femtosecond laser on the market. If you need a reliable femtosecond laser that is maintenance-free, turn-key, and has exquisite optical parameters – look no further!
The laser features an innovative and patented passive cooling design, ensuring high stability of optical parameters such as pulse duration, beam pointing, and power. Indylit 20 mechanical construction can withstand almost everything you can throw at it. It is even protected against the dust!
Built-in optional second harmonics (SH) module provides wavelength extension enabling an even wider range of material processing applications.
INDYLIT 20 SH Industrial femtosecond laser
Specifications |
|
|---|---|
| Center Wavelength: | 515 nm |
| Repetition Rate: | 100-1000kHz |
| Pulse Energy: | > 0.07 mJ |
| Energy Stability (RMS): | < 2 % |
| Pulse Duration: | < 400 fs |
| Pointing Stability (RMS): | < 20 urad |
| Polarization: | Horizontal |
| Spatial Mode (M^2): | <1.2 |
| Amplification Scheme: | Not Specified |
| Average Power: | > 7 W @ 100 kHz; > 3 W @ 1 MHz |
| Internal Pulse Repetition Rate: | 100 kHz – 1 MHz |
| Triggering Mode: | Pulse picker control via TTL gate |
| Pulse Picker: | Integrated |
| Burst Length: | 1...12 pulses |
| Max. Pulse Energy: | > 70 μJ |
| Max. Energy In Burst: | > 200 μJ |
| Power Attenuation: | 100 – 1% |
| Beam Circularity: | > 0.85 |
| Beam Diameter (1/e² Level): | 2.3 ± 0.3 mm |
| Beam Divergence: | < 1 mrad |
| Laser Control Interface: | CAN, USB |
| Cooling: | air, (passive); forced air (fans) |
| Operating Voltage: | 100...240 V AC, 47...63 Hz |
| Average Power Consumption (after Warm-up): | 300 W |
| Operating Temperature: | 18 – 32 °C |
| Humidity: | non condensing |
| Transportation/storage Temperature: | -20 – +70 °C |
| Dimensions Laser Head (L X W X H): | 498 x 248 x 194 mm |
| Dimensions Control Unit (L X W X H): | 449 x 370 x 140 mm |
| Laser Head Cooling: | Air (passive) |
Features
- Extremely robust and stable
- Adjustable repetition rate, pulse duration, power
- High pulse energy and clean pulse shape
- Passively air cooled
- Maintenance-free & turn-key
- Protected against dust
Applications
- Materials microprocessing
- Ophthalmology
- Semiconductor and electronics
- Display manufacturing
- Battery manufacturing
