Novanta ASOPS Engine: High-Speed Time-Domain Spectroscopy with Sub-100 fs Resolution
Description
The Novanta ASOPS Engine is a sophisticated time-domain spectroscopy system, designed to deliver unmatched precision and speed for high-resolution measurements. This advanced system is equipped with two femtosecond lasers in a master-slave configuration, achieving a repetition rate that can be set at either 1 GHz or 84 MHz, depending on the specific needs of the application.
A standout feature of the ASOPS Engine is its ability to stabilize the repetition rate of the slave laser with a fine-tunable offset to the master laser, facilitated by the TL-1000 ASOPS electronic unit. This setup allows for the automatic and precise control of time delays between pump and probe pulses, eliminating the need for mechanical delay lines and significantly speeding up the data acquisition process.
The ASOPS technology supports extremely fast acquisition speeds up to 20 kHz and offers a remarkable time resolution of less than 60 fs for the 1 GHz lasers and below 100 fs for the 84 MHz options. These capabilities make the ASOPS Engine ideal for applications requiring rapid measurements and high temporal resolution, such as two-dimensional thickness measurement of materials and high-frequency phonon mode analysis in substances like ZnO.
Moreover, the system's robust design includes a high-speed balanced optical photoreceiver and an optical trigger unit, enhancing its functionality in complex experimental setups. The included HASSP-Scope software further simplifies measurement and analysis, making it a turn-key solution for researchers and engineers working in fields ranging from materials science to biological research.
Novanta ASOPS Engine: High-Speed Time-Domain Spectroscopy with Sub-100 fs Resolution
Specifications |
|
|---|---|
| Rep Rate Range: | 1 GHz, 84 MHz |
| Time Resolution In ASOPS: | <60 fs |
| Typical Repetition Rate Offset: | 2 kHz to 20 kHz (1 GHz), 10 kHz to 1 kHz (84 MHz) |
| Time Resolution: | < 60 fs (1 GHz), < 100 fs (84 MHz) |
| Time Delay Window: | 1 ns (1 GHz), 11.9 ns (84 MHz) |
| Acquisition Speed: | Up to 20 kHz |
| Typical Time Resolution: | <45 - <100 fs |
| Offset Frequencies: | 4 µHz to 20 kHz |

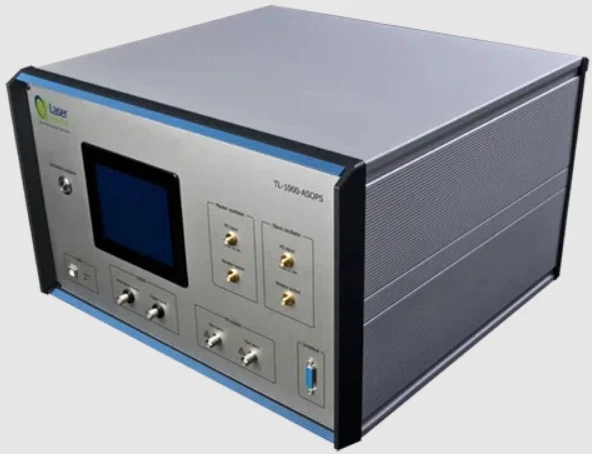

| Control Unit: | TL-1000 ASOPS electronic unit |
| Technologies Supported: | Two-color pump-probe experiments |
| Software: | HASSP-Scope for data acquisition and analysis |
Features
- Ultra-Fast Acquisition: Achieves speeds up to 20 kHz
- Exceptional Time Resolution: Below 60 fs for 1 GHz lasers and below 100 fs for 84 MHz lasers

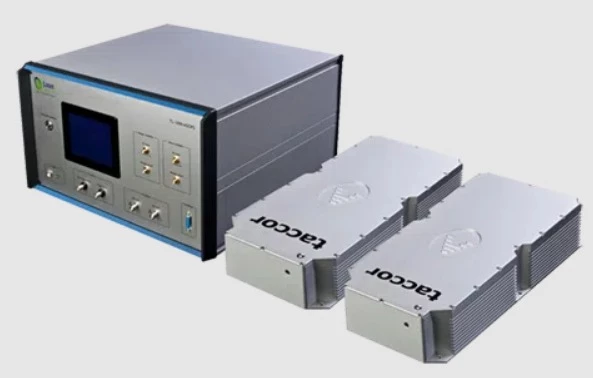

- Comprehensive System: Includes two femtosecond lasers, TL-1000 ASOPS unit, optical trigger, high-speed balanced photoreceiver, and HASSP-Scope software
- Flexible Laser Options: Choice of 1 GHz or 84 MHz femtosecond lasers
- No Translation Stage Required: Eliminates the need for mechanical delay generators
- High Precision: Timing precision with uncertainties at the level of a few parts in 10^5
- Turn-Key Solution: Easy setup with turn-key locking electronics
- Versatile Applications: Suitable for high-speed data acquisition and two-color pump-probe experiments
Applications
- Material Characterization: Precise measurement of material properties and dynamics
- Micromachining: High-precision cutting and structuring of materials
- Scientific Research: Advanced time-domain spectroscopy for physics and chemistry
- Industrial Processing: Fine material processing with ultrafast laser precision
- Semiconductor Analysis: Detailed inspection and measurement of semiconductor structures
- Medical Diagnostics: Non-invasive tissue characterization and diagnostics
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2016
Frequently Asked Questions
ASOPS (ASynchronous OPtical Sampling) technology is a cutting-edge method used in time-domain spectroscopy. It employs two femtosecond lasers in a master-slave configuration with a controlled repetition rate offset, enabling precise time-delay increments for high-speed measurements.
The ASOPS Engine offers extremely fast acquisition speeds up to 20 kHz and exceptional time resolution below 60 femtoseconds for 1 GHz lasers and below 100 femtoseconds for 84 MHz lasers. It supports two-color pump-probe experiments and provides high stability and accuracy in time-domain spectroscopy applications.
It is ideal for a wide range of applications including material characterization, micromachining, scientific research, industrial processing, semiconductor analysis, and medical diagnostics. Its precise time-domain measurements enable detailed analysis of ultrafast phenomena and material properties.
The ASOPS Engine offers a choice between 1 GHz and 84 MHz femtosecond lasers from Laser Quantum’s taccor, venteon, and gecco series. These lasers cater to different application needs, providing flexibility in terms of scan rates and measurement windows.
The system achieves high time resolution by stabilizing the repetition rates of master and slave lasers using the TL-1000 ASOPS unit. This technology ensures precise control over the offset frequency, allowing for time resolutions of less than 60 femtoseconds for 1 GHz lasers and less than 100 femtoseconds for 84 MHz lasers.
The ASOPS Engine comes with the HASSP-Scope software, which facilitates data acquisition, measurement, and analysis of time-domain spectroscopy data. It provides a user-friendly interface for controlling the system and interpreting results.
Yes, the ASOPS Engine is capable of real-time measurements with high precision. It enables rapid acquisition of time-domain data, making it suitable for dynamic experiments and processes that require immediate feedback.
Detailed dimensions and power requirements can be obtained by contacting Novanta directly. The system is designed for robust performance and can be integrated into various experimental setups with minimal space requirements.
Yes, Novanta provides comprehensive technical support for the ASOPS Engine, including installation assistance, training, and ongoing maintenance services. Our global support network ensures prompt assistance and troubleshooting whenever needed.
