Acousto-Optic Modulator 1030nm 80MHz PM980
Description
CSRayzer, a pioneer in specialized optic devices, presents its cutting-edge Acousto-Optic Modulators (AOMs) designed for precision and versatility in a wide array of applications. With a core focus on integrating state-of-the-art technology, these AOMs feature an impressive modulation speed, ensuring rapid response to optical signal changes. The devices boast an exceptionally low insertion loss, enhancing system efficiency by minimizing power dissipation. Their high extinction ratio guarantees superior on/off contrast, critical for precise light control in various optical systems.
The AOMs are distinguished by their low power consumption, making them ideal for energy-sensitive applications while maintaining their high performance reliability. These devices are engineered to offer remarkable temperature stability, ensuring consistent performance across a broad temperature range from -20°C to +60°C for operating conditions, and from -30°C to +70°C for storage, making them reliable under diverse environmental conditions.
Designed for versatility, CSRayzer’s AOMs support a wide wavelength range from 300 nm to 2000 nm, accommodating a plethora of optical systems. They are available with operating frequencies ranging from 35 MHz to 300 MHz, catering to various modulation needs. The AOMs employ Tellurium Dioxide (TeO2) as the interaction material, chosen for its optimal acousto-optic properties, with a typical operating wavelength centered at 1030 nm, extendable up to 1060 nm.
The AOMs exhibit a low rise-time/fall-time of 50 ns, ensuring swift transition between states, and a high polarization extinction ratio of 18 dB, which is critical for applications requiring polarization-sensitive operation. The devices come with an efficient Return Loss of 40 dB and a Voltage Standing Wave Ratio (VSWR) of 1.2:1, indicating minimal RF signal reflection and efficient power transfer.

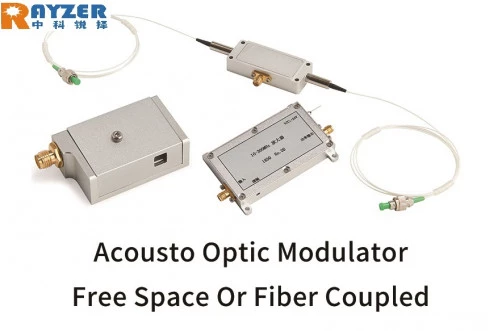

CSRayzer’s AOMs are available in both free-space and fiber-coupled configurations, catering to diverse application needs. The fiber-coupled variant utilizes PM980 fiber, ensuring high-quality light propagation with minimal losses. The AOMs are equipped with FC/APC connectors, ensuring low back-reflection and stable optical connections. Each device is meticulously designed with a compact footprint, with specific dimensions provided for seamless integration into existing systems.
Acousto-Optic Modulator 1030nm 80MHz PM980
Specifications |
|
|---|---|
| Center Wavelength: | 1030 nm |
| Operational Wavelength Range: | 1030-1040nm |
| Acoustic Mode: | Longitudinal |
| Operating Frequency: | 80 MHz |
| Light Polarization: | Linear, Circular, Elliptical |
| Optical Power Density: | 0.5 KW/cm2 |
| Deflection Angle: | 12.66 mrad |
Features
- Low Insertion Loss
- Compact Size
- Stable Performance
- Customized configuration Available
- Low and efficient Cost
Applications
- Ultrafast Picosecond and Femtosecond fiber Laser systems
- Optical Switch
- Acousto-Optic Frequency Shifter
- Laser Pulse Picker
- Amplitude Modulation
- etc.
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2020
Frequently Asked Questions
The wavelength range of the acousto-optic modulator is from 300 nm to 2000 nm.
The frequency range of the acousto-optic modulator is from 35 MHz to 300 MHz.
The acousto-optic modulator can be used in ultrafast picosecond and femtosecond fiber laser systems, optical switches, acousto-optic frequency shifters, laser pulse pickers, and amplitude modulation.
The insertion loss of the acousto-optic modulator is 2.0 dB.
The operating temperature range of the acousto-optic modulator is -20℃ to +60℃.
