Description
MODEL ASM SERIES UV ACOUSTO-OPTIC MODULATOR.

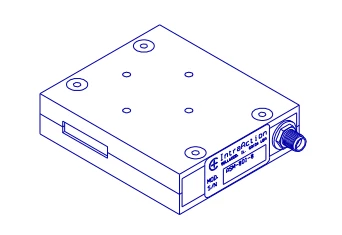

ASM-851B8 UV ACOUSTO-OPTIC MODULATOR
Specifications
| Center Wavelength: | 350 nm |
|---|---|
| Operational Wavelength Range: | 300 – 400 nm |
| Acoustic Mode: | Transverse, Longitudinal |
| Operating Frequency: | 85 MHz |
| Light Polarization: | Linear |
| Optical Power Density: | 50 KW/cm2 |
| Deflection Angle: | 5.14 mrad |
Download Data Sheet
Features
INTENSITY MODULATION
PHOTOLITHOGRAPHY
OPTICAL FREQUENCY SHIFTING
LASER BEAM DEFLECTION
HIGH OPTICAL POWER CAPABILITY
HIGH RELIABILITY
EXCELLENT TEMPERATURE STABILITY
Frequently Asked Questions
What is the ASM-851B8 UV Acousto-Optic Modulator used for?
The ASM-851B8 UV Acousto-Optic Modulator is used for intensity modulation, photolithography, optical frequency shifting, and laser beam deflection.
What is the modulation bandwidth of the ASM-851B8 UV Acousto-Optic Modulator?
The modulation bandwidth of the ASM-851B8 UV Acousto-Optic Modulator is 20 MHz (0.22mm dia.).
What is the optical rise time of the ASM-851B8 UV Acousto-Optic Modulator?
The optical rise time of the ASM-851B8 UV Acousto-Optic Modulator is 24 nsec (0.22mm dia.).
What is the optical wavelength range for the ASM-851B8 UV Acousto-Optic Modulator?
The optical wavelength range for the ASM-851B8 UV Acousto-Optic Modulator is 300 to 400 nm.
What is the weight of the ASM-851B8 UV Acousto-Optic Modulator?
The weight of the ASM-851B8 UV Acousto-Optic Modulator is 175 grams.
