Acousto-Optic Modulator / Frequency Shifter 1030nm 200MHz
Description
CSRayzer offers acousto-optic modulators with fast modulation speed, low insertion loss, high extinction ratio, low power consumption, good temperature stability and high performance reliability. They are a type of optoelectronic product that uses the principle of acousto-optic interaction to perform amplitude modulation and frequency shift processing on lasers.
The possible wavelength regions are from the visible to the infrared. It has an all-metal structure design, compact and sturdy hermetic packaging structure, and innovative packaging technology to ensure high reliability and temperature stability.

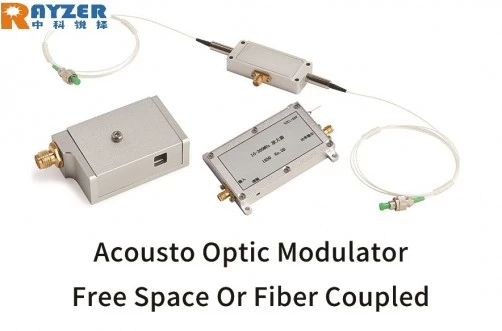

CSRayzer provides free space or fiber-coupled acousto-optic modulators , which are applied for Q-switched fiber lasers, laser Doppler coherent applications, ultrafast laser frequency pulse pickers, linear frequency adjustment, with wavelength range from 300 nm to 2000 nm, and frequency range from 35 MHz to 300 MHz.
Acousto-Optic Modulator / Frequency Shifter 1030nm 200MHz
Specifications |
|
|---|---|
| Wavelength Range: | 1020-1040nm |
| Max Laser Input Power: | 2.5 W |
| Input Frequency Range: | 200-200MHz |
| Input Polarization: | Horizontal |
| Max. Insertion Loss: | 2.5 dB |
| Connector: | FC/APC |
| Min. Polarization Extinction Ratio: | 20 dB |
| Max. Rise-Time/Fall-Time: | 10 ns |
| Min. Extinction Ratio(Turn On/Off): | 45 dB |
| Frequency Shift: | +- 200 (Default: +200) MHz |
Features
- Low Insertion Loss
- Compact Size
- Stable Performance
- Customized configuration Available
- Low and efficient Cost
Applications
- Q Switch
- Optical Switch
- Frequency shifting
- Pulse Picker
- Laser research of University, College or Institute
- Quantum communication
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2020
Frequently Asked Questions
An acousto-optic modulator is an optoelectronic product that uses the principle of acousto-optic interaction to perform amplitude modulation and frequency shift processing on lasers.
The acousto-optic modulator has low insertion loss, compact size, stable performance, and customized configuration options.
The acousto-optic modulator can be used for Q-switching, optical switching, frequency shifting, pulse picking, laser research in universities, colleges, or institutes, and quantum communication.
The operating wavelength range of the acousto-optic modulator is ±10 nm from the signal wavelength of 1030 nm.
The maximum average optical power of the acousto-optic modulator is 1 W.
