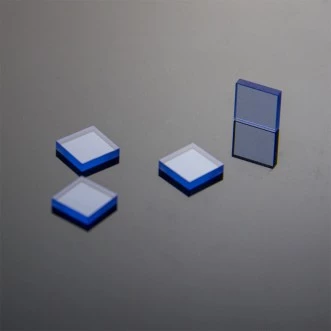

Co:Spinel (Co:MgAl2O4) Passive Q-switch Crystals
Description
Co2+:MgAl2O4 (or Co:Spinel) is a relatively new material for saturable absorber passive Q-switching in lasers emitting from 1.2 to 1.6 microns, in particular, for eye-safe 1.54 μm Er:glass laser.High absorption cross section of 3.5 x 10-19 cm2 permits Q-switching of Er:glass laser.High absorption cross section of 3.5 x 10-19 cm2 permits Q-switching of Er:glass laser without intracavity focusing both with flash lamp and diode-laser pumping. Negligible excited-state absorption results in high contrast of Q-switch, i.e. the ratio of initial (small signal) to saturated absorption is higher than 10. Finally, excellent optical, mechanical, and thermal properties of the crystal give an opportunity to design compact and reliable laser sources with this passive Q-switch.
Attention You can customise this product to your needs.
Co:Spinel (Co:MgAl2O4) Passive Q-switch Crystals
Specifications |
|
|---|---|
| Type Of Crystal: | TeO2 |
| Crystal Diameter: | 3-6 mm |
| Crystal Length: | 1±0.5 mm |
| AR Coating: | Both sides |
| Initial Transmission T=30~97% : | AR/AR@1540nm standard size and customized size 100 |
Features
- Suitable for 1540 nm eye-safe lasers
- High absorption section
- Negligible excited state absorption
- High optical quality
- Uniformly distributed Co
Applications
- Eye-safe 1540 nm Er:glass laser
- 1440 nm laser
- 1340 nm laser
- Eye-safe laser range finder
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
Nanjing Metalaser Photonics Co.,Ltd. -
On FindLight:
since 2018
Frequently Asked Questions
Co:Spinel is a material used for saturable absorber passive Q-switching in lasers emitting from 1.2 to 1.6 microns, particularly for eye-safe 1.54 μm Er:glass laser.
The absorption cross section of Co:Spinel is 3.5 x 10-19 cm2, which permits Q-switching of Er:glass laser without intracavity focusing both with flash lamp and diode-laser pumping.
Co:Spinel has excellent optical, mechanical, and thermal properties, which give an opportunity to design compact and reliable laser sources with this passive Q-switch.
Co:Spinel is suitable for eye-safe 1540 nm Er:glass laser, 1440 nm laser, 1340 nm laser, and eye-safe laser range finder.
The damage threshold of Co:Spinel is greater than 500 MW/cm2.
