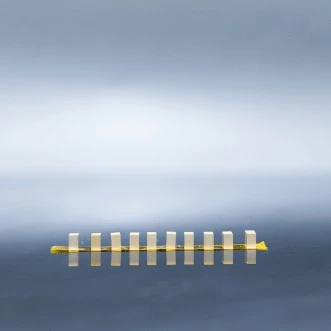

Er, Yb:Phosphate glass EAT14
Description
Er3+/Yb3+ co-doped phosphate glass — as the 1540nm eye-safe radiation sources pumped by LD which can emit eye-safe 1540nm laser radiation directly used in laser ranging finder and telecommunication communication.
Er3+ emission transition occurs within this wavelength range corresponding to the 4I13/2 →4I15/2 . However, Er3+ absorption itself is too weak to allow direct pumping and so, energy transfers are required. The most efficient ones are given by Yb3+ ions under absorption from the 2F7/2 → 2F5/2 transition, followed by energy transfer to the 4I11/2 Er3+ level and fast nonradiative transition to the Er3+ 4I13/2 level which emits the expected fluorescence.
Er,Yb:glass laser with radiation output at the wavelength of 1540 nm does not require the addition of additional components.
Er, Yb:Phosphate glass EAT14
Specifications |
|
|---|---|
| Type Of Crystal: | Er Glass |
| Crystal Diameter: | 2*2 mm |
| Crystal Length: | 2.5 mm |
| AR Coating: | Both sides |
| Thickness/Diameter Tolerance: | ±0.05 mm |
| Density (g/cm3): | 3.06 |
| Abbe Value: | 66 |
| Dn/dT (10-6/℃) (20~100℃): | -1.72 |
| Transformation Temp. (℃): | 556 |
Features
- Wide absorption band
- Long fluorescence lifetime
- High optical quality
- Safety for eye
- High slope efficiency
Applications
- 1 35nm eye-safe laser
- Er glass fiber amplifier
- Range finder
- Target recognition
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
Nanjing Metalaser Photonics Co.,Ltd. -
On FindLight:
since 2018
Frequently Asked Questions
No, Er, Yb:Phosphate glass EAT14 does not require the addition of additional components.
The transformation temperature is 556 ¥, the softening temperature is 605 ¥, the coefficient of linear thermal expansion is 2.9 x 10-7/K, and the thermal conductivity at 25 ¥ is 87 W/mK.
Er, Yb:Phosphate glass EAT14 is used as a 1540nm eye-safe radiation source pumped by LD which can emit eye-safe 1540nm laser radiation directly used in laser ranging finder and telecommunication communication.
The Yb3+ ions have an absorption range from the 2F7/2 → 2F5/2 transition.
The Er3+ emission transition occurs within the wavelength range corresponding to the 4I13/2 →4I15/2.
