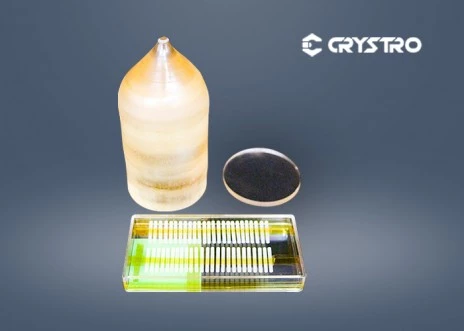

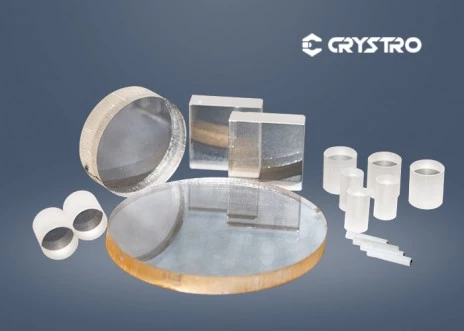

Tb3Ga5O12 TGG Crystals
Description
TGG is an excellent magneto-optical crystal used in various Faraday devices(Rootator and Isolator)in the range of 400nm-1100nm,excluding 475-500nm.
Tb3Ga5O12 TGG Crystals
Specifications |
|
---|---|
Type Of Crystal: | TGG |
Crystal Diameter: | 1,2,2.5,3,5-102 mm |
Crystal Length: | up to 150 mm |
AR Coating: | Both sides |
Verdet (rad/M/T): | 190/134/40@532nm/633nm/1064nm |
Density: | 7.13g/cm3 |
Hardness: | 8.0 |
Refractive Index: | 1.954 at 1064nm |
Features
Large Verdet constant (35 Rad T-1m-1).
Low optical losses (<0.1%/cm)
High thermal conductivity (7.4W m-1K-1).
High laser damage threshold (>1GW/cm2).
Applications
Faraday Rotator
Free Space Isolators
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2019
Frequently Asked Questions
TGG crystal is used in various Faraday devices such as Rotators and Isolators.
TGG crystal operates in the range of 400nm-1100nm, excluding 475-500nm.
The key features of TGG crystal include a large Verdet constant (35 Rad T-1m-1), low optical losses (<0.1%/cm), high thermal conductivity (7.4W m-1K-1), and high laser damage threshold (>1GW/cm2).
TGG crystal is commonly used in Faraday Rotators and Free Space Isolators.
The thermal conductivity of TGG crystal is 7.4W m-1K-1.
