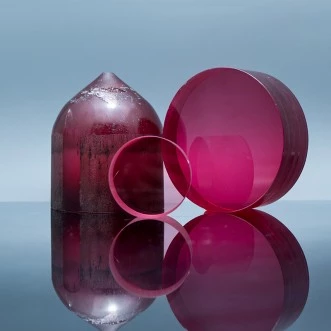

Ti:Sapphire Crystal
Description
Titanium-doped sapphire (Ti3+:sapphire) as an optically pumped, solid-state laser crystal is widely used in wavelength tunable laser which tunable range is 650-1100nm, and peaking at 800nm, it is one of the widest wavelength tunable laser crystal. The upper-state lifetime of Ti:sapphire is short to 3.2ms, because of high saturation power, it’s hard to pump it by lamp, argon ion lasers or frequency doubled Nd:YAG laser etc. is usually adapted. Using self-mode-locking technology, the Ti:Sapphire laser can output laser pulse with pulse width as short as 6.5fs directly, which is the narrowest laser pulse of all lasers that directly output from the resonant cavity. Through frequency-double technology, the wavelength of laser beam can cover wide band from blue to deep ultraviolet, produced 193 nm laser has been used in lithography machine.
Ti:Sapphire Crystal
Specifications |
|
|---|---|
| Type Of Crystal: | Ti:Sapphire |
| Crystal Diameter: | 3 mm |
| Crystal Length: | 3 mm |
| AR Coating: | Uncoated |
| Wavefront Distortion: | <L/4@632 nm |
| Materials: | Ti3+:Al2O3 |
| Concentration: | (0.05~0.35) wt% |
| Orientation: | A-Axis within 5°, E-vector parallel to C-Axis |
| Parallelism: | 30〞 |
Features
- Wide wavelength tunability
- Broad absorption pump band
- Preeminent output efficiency
- Short upper-state lifetime(3.2 mm)
- Narrow locked mode width
- High damage thresholdExcellent thermal conductivity
Applications
- Femtosecond Ti:sapphire Laser
- Ti:sapphire amplifier
- Ti:sapphire pumped optical parametric oscillator
- Ti:sapphire Tunable laser
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
Nanjing Metalaser Photonics Co.,Ltd. -
On FindLight:
since 2018
Frequently Asked Questions
The narrowest laser pulse that can be output directly from the resonant cavity of Ti:Sapphire laser is 6.5fs.
Ti:Sapphire crystal has excellent thermal conductivity.
The upper-state lifetime of Ti:Sapphire crystal is short, only 3.2ms.
The wavelength tunable range of Ti:Sapphire crystal is 650-1100nm, and it peaks at 800nm.
Ti:Sapphire crystal is widely used in wavelength tunable lasers, femtosecond lasers, Ti:Sapphire amplifiers, Ti:Sapphire pumped optical parametric oscillators, and Ti:Sapphire tunable lasers.
