Description
Property ValueChemical Formula Tb3Sc2Al3O12Lattice Parameter a=12.3ÅDensity 5.91g/cm3Melting Point 1970℃±10℃Growth Method CzochralskiCrystal Structure Cubic, Space group Ia3dDensity 5.91 g/cm3
Specifications |
|
---|---|

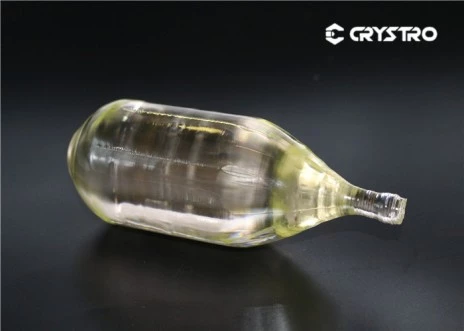

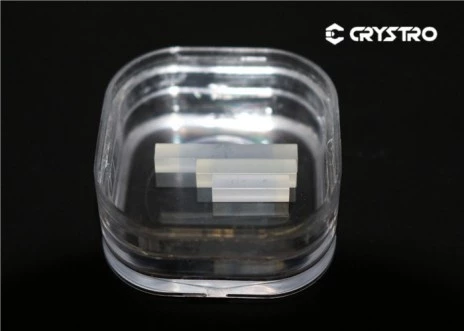

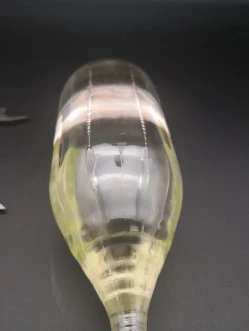

Type Of Crystal: | TSAG |
Crystal Diameter: | 50 mm |
Crystal Length: | 120 mm |
AR Coating: | Both sides |
Verdet (rad/M/T): | 218/152/65@532nm/633nm/1064nm |
Crystal Structure: | Cubic,Space group la3d |
Chemical Formular: | Tb3Sc2Al3O12 |
Transmission Range: | 400-1600nm |
Features
1.Verdet constant 20% higher than TGG(48radT-1m-1 at 1064nm)
2. Absorption 30% lower than TGG(<3000ppm/cm at 1064nm)
3. Make your isolator small
Applications
Faraday Rotators
Isolators
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2019
Frequently Asked Questions
The applications of TSAG crystal are Faraday Rotators and Isolators.
The features of TSAG crystal are: 1. Verdet constant 20% higher than TGG(48radT-1m-1 at 1064nm) 2. Absorption 30% lower than TGG(<3000ppm/cm at 1064nm) 3. Make your isolator small.
The chemical formula of TSAG crystal is Tb3Sc2Al3O12.
The density of TSAG crystal is 5.91g/cm3.
The lattice parameter of TSAG crystal is a=12.3Å.
