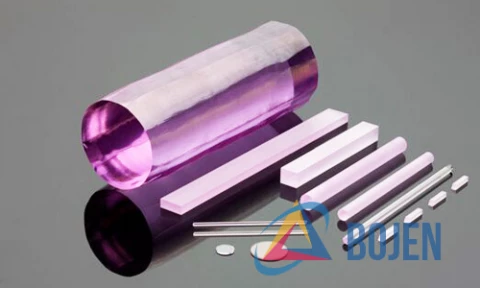

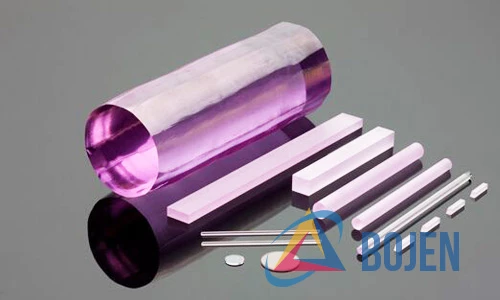

Yb:YAG Crytals
Description
Ytterbium-doped YAG (Yb:YAG) is an active laser medium lasing at 1030 nm, with a broad, 18 nm wide absorption band at 940 nm. It is one of the most useful media for high-power diode-pumped solid state lasers. The dopant levels used range between 0.2% and 30% of replaced yttrium atoms. Yb:YAG has very low fractional heating, very highslope efficiency, and no excited-state absorption or up-conversion, high mechanical strength and high thermal conductivity. Yb:YAG can be pumped by reliable InGaAs laser diodes at 940 or 970 nm.
Yb:YAG is a good substitute for 1064 nm Nd:YAG in high-power applications, and its frequency-doubled 515 nm version can replace the 514 nm argon lasers.
Yb:YAG Crytals
Specifications |
|
---|---|
Type Of Crystal: | Er:YAG |
Crystal Diameter: | 3 mm |
Crystal Length: | 50 mm |
AR Coating: | Both sides |
Applications
Yb:YAG lasers
Laser Crytals
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2015
Frequently Asked Questions
Yb:YAG has very low fractional heating, very high slope efficiency, and no excited-state absorption or up-conversion, high mechanical strength, and high thermal conductivity.
Yb:YAG is used in high-power diode-pumped solid-state lasers and is a good substitute for 1064 nm Nd:YAG in high-power applications.
Yb:YAG is an active laser medium that lases at 1030 nm, with a broad, 18 nm wide absorption band at 940 nm.
Yes, the frequency-doubled 515 nm version of Yb:YAG can replace the 514 nm argon lasers.
Yb:YAG can be pumped by reliable InGaAs laser diodes at 940 or 970 nm.
