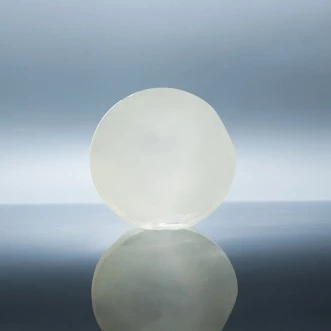

LITHIUM NIOBATE - LINBO3 CRYSTALS
Description
LiNbO3 crystal has been widely used in optical waveguide and optical communication technology because of its excellent electro-optical properties. It is an ideal substrate material for many integrated optoelectronic devices. Because of the large electro-optic coefficient of LiNbO3, the half-wave voltage is low. The electro-optic effect of LiNbO3 crystal is usually used to modulate the optical signal. Electro-optic modulation is divided into longitudinal and transverse, and LiNbO3 is mainly used in transverse modulation. It has been widely used in medium and low power solid-state lasers.
LITHIUM NIOBATE - LINBO3 CRYSTALS
Specifications |
|
|---|---|
| Crystal Type: | LiNbO3 (Lithium Niobate) |
| Phase Mathcing Type: | Type I |
| Mounting: | Unmounted |
| Width: | 6 mm |
| Height: | 6 mm |
| Length: | 25 mm |
| Flatness: | <= Lambda/8 |
| Surface Quality (Scratch-Dig): | 20-10 |
| AR Coating: | Both Sides |
| Length: | 15~25mm |
| Chemical Formula: | LiNbO3 |
| Crystal Structure: | trigonal |
| Density: | 5 |
| Transparency Range: | 420 – 5200 nm |
| Aperture: | 4x4mm ~ 9x9mm |
Features
- Wide transparency range
- High electro-optic efficiency
- Stable mechanical and chemical properties
- Low absorption loss
- low damage threshold
- Small volume
- Not easy to deliquesce
- High temperature stability
- Large electro-optic coefficient
- Easy to grow into large crystal
Applications
- 532nm laser
- Holography
- 1064nm laser
- Medical Applications
- 2940nm laser
- Pulse range finder
- Laser target indicator
- Electro-optic Q-switch
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
Nanjing Metalaser Photonics Co.,Ltd. -
On FindLight:
since 2018
Frequently Asked Questions
LiNbO3 crystal is suitable for use in 532nm laser, holography, 1064nm laser, medical applications, 2940nm laser, pulse range finder, laser target indicator, and electro-optic Q-switch.
LiNbO3 crystal has a wide transparency range, high electro-optic efficiency, stable mechanical and chemical properties, low absorption loss, low damage threshold, small volume, high temperature stability, large electro-optic coefficient, and is easy to grow into large crystal.
The physical and optical properties of LiNbO3 crystal include chemical formula trigonal, crystal structure LiNbO3 R3C, absorption coefficient 5 ~ 0.1 % / cm @ 1064 nm, transparency range 420 – 5200 nm, operating wavelength range 1.525-1.605µm, extinction ratio ġ20dB, half wave voltage ġ8V, and input characteristic impedance ġ6V.
LiNbO3 crystal is widely used in optical waveguide and optical communication technology due to its excellent electro-optical properties. It is an ideal substrate material for many integrated optoelectronic devices.
The maximum input electric power for optical waveguide is 20dBm and the maximum input optical power is 10-100mW. The storage temperature for Q-switch is -40-70¥ and the operating temperature is -40-85¥. The aperture for Q-switch is 4x4mm.
