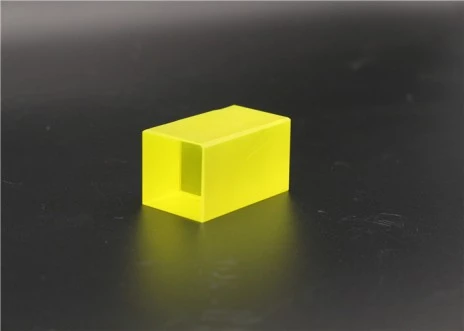

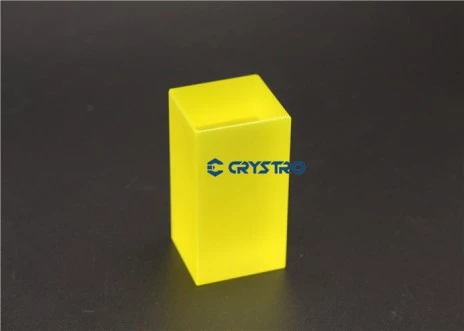

Ce:GAGG Crystal
Description
The cerium doped multicomponent Gadolinium Aluminum Gallium Garnet crystals, referred as Ce:GAGG with the chemical formula of Ce:Gd3Al2Ga3O12, belong to the most important discoveries that offer excellent scintillation properties as well as having entered the scintillator market in the current decade. The effective atomic number is 54.4, and the emission spectrum peak wavelength is 520 nm.
Apart from the high light yield, good energy resolution, high effective atomic number, fast scintillation response, chemical stability also ruggedness and capability of large crystal growth are very important properties for Ce:GAGG crystals as well.
The linearity of response on the gamma quanta shows Ce:GAGG crystals is a promising candidate for medical imaging techniques, such as X-ray radiography, X-ray computed tomography (CT), positron emission tomography (PET). Single crystal scintillators are frequently used for scanning electron microscopy (SEM).
Ce:GAGG Crystal
Specifications |
|
|---|---|
| Radiation Length: | / mm |
| Decay Time Constant: | 90 ns |
| Emission Peak: | 520 nm |
| Chemical Formula: | Ce:Gd3Al2Ga3O12 |
| Density (g/cm3): | 6.63 |
| Wavelength Range (nm): | 475-800 |
| Light Yield (photons/keV): | 50 |
Features
- High light output
- Quite fast decay time
- High density
- Fair energy resolution
- Absence of intrinsic radioactivity
- Non-deliquescent
Applications
- Scanning electron microscopy (SEM)
- γ-ray detection
- Medical imaging techniques
- Nuclear and high energy physics
- X-ray radiography
- X-ray computed tomography (CT)
- Positron emission tomography (PET)
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2019
Frequently Asked Questions
The chemical formula of Ce:GAGG crystals is Ce:Gd3Al2Ga3O12.
The emission spectrum peak wavelength of Ce:GAGG crystals is 520 nm.
Some important properties of Ce:GAGG crystals include high light yield, good energy resolution, high effective atomic number, fast scintillation response, chemical stability, ruggedness, and capability of large crystal growth.
Ce:GAGG crystals are used in scanning electron microscopy (SEM), γ-ray detection, medical imaging techniques (such as X-ray radiography, X-ray computed tomography, and positron emission tomography), and nuclear and high energy physics.
No, Ce:GAGG crystals do not have intrinsic radioactivity.
