Description
Right Angle Prisms are essential optical components, expertly designed for precise beam deviation and retro-reflection. Unlike traditional plane mirrors, these prisms offer superior ease of mounting and alignment, making them a preferred choice in various optical setups. Their unique geometry allows for high throughput, especially when the hypotenuse is utilized in total internal reflection (TIR). By ensuring the entrance and exit surfaces are anti-reflection coated, the prisms can efficiently reflect an incident beam at a 90° angle, resulting in inverted images.
The versatility of Right Angle Prisms extends to external reflection applications as well. In such cases, the hypotenuse can be coated with either a metal or dielectric high reflectance coating, enhancing its reflective capabilities. Furthermore, these prisms are adept at retro-reflection, where a beam entering perpendicular to the hypotenuse is reflected by the legs and exits parallel to its original path. This feature is particularly valuable in applications requiring precise beam alignment.
For scenarios where internal reflection is necessary but field angle requirements exceed TIR acceptance limits, or if environmental conditions challenge the cleanliness needed for TIR, a metal or dielectric coating on the hypotenuse offers an effective solution. This adaptability ensures that Right Angle Prisms meet diverse optical requirements while maintaining high performance and reliability.
RMI Right Angle Prism - BK7 - UVFS - FS - SF2
Specifications |
|
|---|---|
| Material: | BK7, FS, UVFS, SF2 |

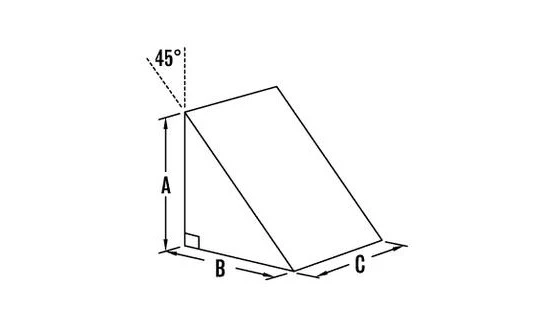

| Dimensions: | Custom |
| Surface Flatness: | Lambda/20 @ 633nm |
| Surface Quality: | 10-5 Scratch-Dig |
Features
- Beam Deviation and Retro-Reflection: Right Angle Prisms are ideal for deviating beams by 90° and for retro-reflection applications, making them a versatile choice for optical systems.
- High Throughput: Achieve high throughput with total internal reflection (TIR) when the hypotenuse is used, and surfaces are anti-reflection coated.
- External Reflection Capability: The hypotenuse can be coated with metal or dielectric high reflectance coatings for external reflection applications.
- Material Options: Available in a variety of materials including BK7, UVFS, FS, SF2, and CaF2, catering to different optical needs.
- Precision Surface Figure: All polished surfaces offer a surface figure of λ/20 at 633 nm for BK7, UVFS, FS, SF2, and λ/4 at 633 nm for CaF2.
- Exceptional Surface Quality: Surface quality is rated at 10-5 for BK7, UVFS, FS, SF2, and 20-10 for CaF2, ensuring minimal surface imperfections.
- Dimensional Precision: Prisms are manufactured with a dimensional tolerance of +0.000", –0.010", and an angular deviation of ≤ 3 arc minutes.
- Clear Aperture: The clear aperture exceeds the central 85% of the diameter, ensuring optimal light transmission.
- Customizable Bevels: Bevels are available from 0.010" to 0.030" at 45º, allowing for customization based on application needs.
Applications
- Beam Steering Systems: Ideal for directing beams at precise 90° angles in optical setups
- Retro-Reflection Applications: Maintains beam parallelism for metrology and alignment systems
- Laser Optical Assemblies: Used for beam deviation and image inversion in laser systems
- Scientific and Research Instruments: Essential in optical labs for experimental beam manipulation
- Imaging Systems: Provides efficient image inversion for precision optical imaging devices
Frequently Asked Questions
Total internal reflection (TIR) is a phenomenon where light is reflected back into a medium when it encounters a boundary with a lower refractive index at an angle greater than the critical angle.
Anti-reflection coating on the entrance and exit surfaces of a Right Angle Prism helps to achieve high throughput by reducing the amount of light that is lost due to reflection.
A Right Angle Prism is a type of prism that is well-suited for beam deviation and retro-reflection.
Right Angle Prisms can be made from a variety of materials, including BK7, UVFS, FS, and SF2.
Right Angle Prisms are easier to mount and align than plane mirrors.
