Custom Wedge Prism for Precision Optical Applications
Description
The Custom Wedge Prism is a versatile optical element specifically engineered for applications in astronomy, laser technology, and photonics. This high-performance prism is crafted from premium materials such as Fused Silica, Zerodur, or N-BK7/HK9L, ensuring exceptional durability and reliability.
Offering dimensions customizable from 5mm to 500mm and adjustable angles of up to 6 degrees, it can be tailored to fit specific project requirements. The prism operates efficiently across a broad wavelength range, from UV to Far IR, making it ideal for diverse optical tasks that require precise beam manipulation.
Additionally, the surface quality can be specified to meet strict performance criteria, enabling optimal transmission and minimal distortion. The Custom Wedge Prism enhances optical systems' efficiency and performance, making it an invaluable component for innovative designs in scientific research, industrial applications, and advanced photonic systems. Its flexibility and high-quality construction make it an essential choice for engineers and researchers seeking reliable optical solutions.

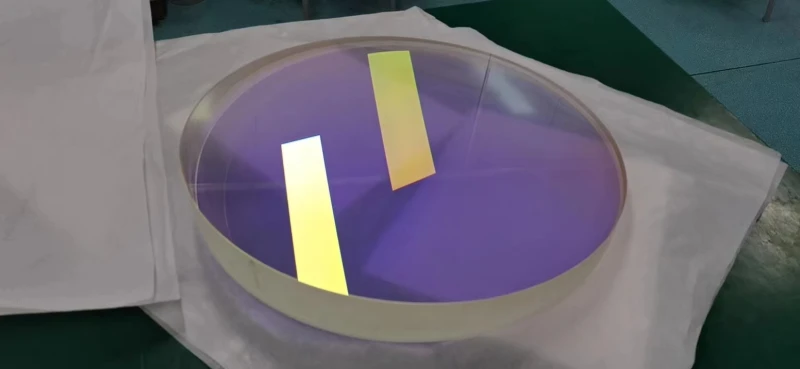

Custom Wedge Prism for Precision Optical Applications
Specifications |
|
|---|---|
| Diameter: | 420 mm |
| Thickness (T): | 55 mm |
| Wedge Angle: | 6 deg |
| Material: | BK7, FS, Other |
| Wavelength Range: | Custom from UV to Far IR |
| Surface Quality S&D: | 20/10 or custom |
| Applications: | Astronomy, lasers, photonics devices |
Features
- High-Quality Materials: Available in Fused Silica, Zerodur, and N-BK7/HK9L for durability and precision
- Customizable Dimensions: Prism sizes from 5mm to 500mm tailored to specific requirements
- Flexible Wavelength Range: Custom wavelengths from UV to Far IR for versatile use
- Precise Surface Quality: Surface quality rated at S&D 20/10 or customized for high optical performance
- Adjustable Wedge Angle: Standard 6° angle or fully customizable for specific beam control needs
Applications
- Astronomy: Used in telescopic systems for accurate light redirection and optical adjustments
- Laser Systems: Ideal for laser beam steering and focusing applications in industrial setups
- Photonics Devices: Supports precise light manipulation in photonic and fiber optic devices
- Imaging Systems: Used in advanced imaging systems to correct beam path and minimize distortion
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Belgium
-
Sold by:
-
On FindLight:
since 2020
Frequently Asked Questions
The Custom Wedge Prism can be made from Fused Silica, Zerodur, or N-BK7/HK9L substrates.
Dimensions can be customized from 5mm to 500mm to suit specific application needs.
It operates efficiently across a wide range, from UV to Far IR.
Surface quality can be specified as S&D 20/10 or can be customized to meet specific performance requirements.
The standard angle is 6°, but it can also be customized based on application requirements.
Ideal for astronomy, laser technology, and various photonics devices.
The prism is designed to ensure high transmission rates, often exceeding 98%.
Yes, you can contact us for a custom quote tailored to your specific requirements and applications.
