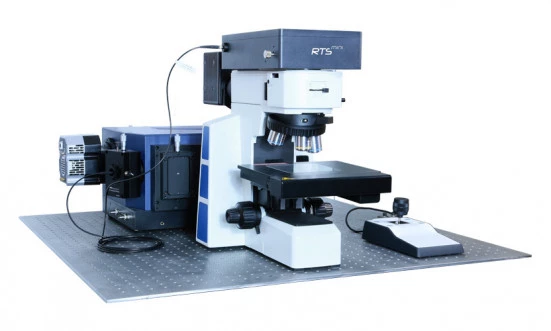

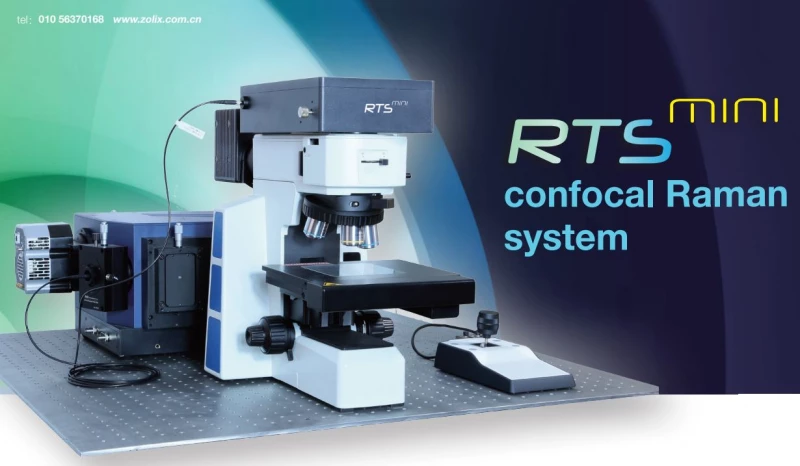

RTS-mini Confocal Raman microscope
Description
The RTS-mini Confocal Raman Microscope is compact, versatile, and very easy to use. It is dedicated to the industrial and routine analytical sector. Even though it is simple to operate, it can obtain exceptional performance and reliable results. Without switching laser wavelengths and changing filters, the system is very stable. It is an essential instrument for large laboratories with multiple users, allowing them to focus on the science, and not on adjusting the instrument.
This Confocal Raman microscope is fully suited for micro measurements and can supply its own mapping functions. Its compact and modular design allows easy integration with most upright microscopes. Whether you already have an upright microscope or don't, we can supply the appropriate combination that suits your application and budget. Please inquire!
Confocal Raman microscopy is a non-invasive analysis technique that requires minimal sample preparation. It offers Raman spectroscopy with spatial resolution allowing chemical imaging of various samples. The data relies on the spectral information that the Raman signal contains with an added benefit of spatial mapping in all directions.
The samples under study can cover a wide range including polymers, ceramics and nanomaterials (graphene, monolayer of MoS2, etc.). Raman microscopy can be an ideal technique for research and industry offering highly reliable and accurate data on the chemical fingerprint of the analyzed sample.
RTS-mini Confocal Raman microscope
Specifications |
|
|---|---|
| Excitation Wavelength: | 532 nm |
| Laser Power: | 100 mW |
| Raman Shift Range: | 80-9000cm^-1 |
| Spectral Resolution: | 1.5 cm^-1 |
| Special Attributes: | Confocal Microscope, Mini |
| Connectivity: | |
| Weight: | -- kg |
| Certification: | |
| Electrical Power Source: | Not specified |
| 3rd Raman Peak Of Monocrystalline Silicon: | S/N:>20:1 |
| Spectral CCD Format: | 2000x256 Back-illuminated Deep-depletion TE cooling to -60℃ |
| Sample Positioning: | Manual (Motorized optional) |
| Lens Objectives: | 10x/50x/100x, 50xLWD Semi-APO |
| Epi Illumination: | QTH 12V, 100W |
| Grating Option: | 1800g/500nm, 600g/500nm, 150g/500nm blazed |
| Geometry: | Czerny-Turner |
Features
High Spatial Resolution: This Confocal Raman Microscope features 2μm spatial resolution.
Three gratings: With three grating turrets it can provide 2 cm-1 spectral resolution and 80-6000 cm-1 spectral range.
Positioning Camera: it is equipped with a camera to show the position of the laser spot and sample directly.
High-Efficiency TE-cooled CCD: Highly efficient, Peltier-cooled CCD camera in this confocal Raman spectrometer, offers ultra-low noise and high sensitivity of measurements
Applications
RTS-mini Confocal Raman microscope is ideally suited for the following applications:
- Pharmaceutical Industries
- Analysis of Nano-materials
- Semiconductor Industry
- Polymers
- Geology
- Testing and Identifying Chemicals
- Art and Museum
- Forensics
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2020
Frequently Asked Questions
The RTS-mini Confocal Raman microscope is used for non-invasive analysis of various samples, including polymers, ceramics, nanomaterials, and biological samples.
The Confocal Raman microscope features a spatial resolution of 2μm.
The Confocal Raman microscope provides a spectral resolution of 2 cm-1 and a spectral range of 80-6000 cm-1.
Yes, the Confocal Raman microscope is equipped with a positioning camera to show the position of the laser spot and sample directly.
The available laser wavelengths for the Confocal Raman microscope are 532nm, 638nm, and 785nm, with corresponding laser powers of 100mW, 50mW, and 100mW.
