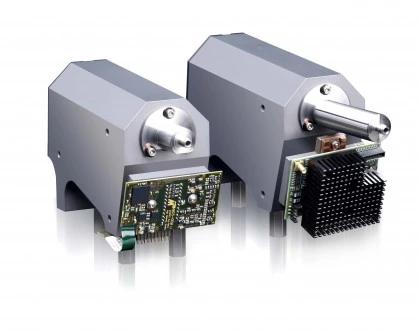

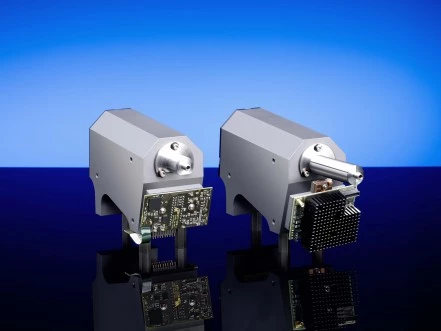

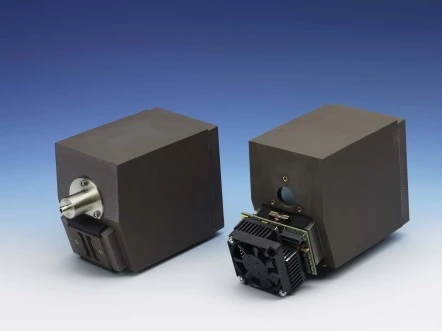

MCS FLEX CCD Multichannel Spectrometer
Description
Obstacles can be avoided or eliminated – provided you have the flexibility to act. The new housing structure of the MCS FLEX now allows much more flexible integration of the spectrometer module into your measuring systems and overcomes all obstacles.
The MCS FLEX employs an imaging grating, an optical input and a CCD or PDA sensor array. The core of the spectrometer is a blazed flat-field grating for light dispersion and imaging. The overall configuration results in a spectral pixel pitch of 0.8 nm / pixel, enabling a spectral resolution of better than 3 nm, in accordance with the Rayleigh criterion. The optical input is an SMA connector with an integrated fiber cross section converter.
All of the optical components are mounted in a housing made of a special alloy. The housing can now be placed to the users’ measuring systems with much more flexibility.
The special alloy of the housing completes the excellent thermal properties of the MCS FLEX. With their compact size and low weight, the spectrometer modules are ideally suited for mobile measuring systems. Their excellent thermal stability and very low amount of stray light ensure reliable measuring results even in rough environments.
Depending on the sensor array, the modules are offered as MCS FLEX CCD (190 – 980 nm) or MCS FLEX PDA (190 – 1015 nm).
MCS FLEX CCD Multichannel Spectrometer
Specifications |
|
|---|---|
| Monochromator Type: | Flat Field Grazing Incidence |
| Effective Focal Length: | -- mm |
| Diffraction Grating: | 248 lines/mm |
| Grating Blaze Wavelength: | 500 nm |
| Spectral Range: | 190-980nm |
| Linear Dispersion (Avg): | -- nm/mm |
| Spectral Resolution (Avg): | 3 nm |
Features
What is new in the MCS FLEX?
- More flexible module placement
- Lower temperature drift
- Less stray light
- More compact design
- Considerably less weight
Applications
The spectrometer modules can be integrated close to the process and are extremely versatile. Their applications range from thickness measurements of thin layers and chemical analyses to the characterization of light sources and deployment as HPLC detectors. They are ideal for process and quality control, monitoring or calibration. Furthermore, the high light sensitivity of the MCS FLEX CCD enables its use for fluorescence measurements in microscopy or special layer thickness measurements in the semiconductor industry.
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2016
Frequently Asked Questions
The MCS FLEX can be used for thickness measurements of thin layers, chemical analyses, characterization of light sources, and deployment as HPLC detectors. It is ideal for process and quality control, monitoring, or calibration.
The MCS FLEX CCD Multichannel Spectrometer is a device that employs an imaging grating, an optical input, and a CCD or PDA sensor array for light dispersion and imaging.
The MCS FLEX CCD covers a spectral range of 190-980 nm, while the MCS FLEX PDA covers a spectral range of 190-1015 nm.
The spectral pixel pitch of the MCS FLEX is 0.8 nm/pixel, which enables a spectral resolution of better than 3 nm.
The temperature-induced drift of the MCS FLEX is less than 0.5 pm/K.
