Shamrock 163 - 150 lpmm 800nm Blaze Spectrograph
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United Kingdom
-
Sold by:
-
On FindLight:
since 2015
Description
The Shamrock 163 stands as the most compact research-grade Czerny-Turner spectrograph available today, offering a versatile solution for benchtop spectroscopy applications. With its 163 mm focal length and high F/3.6 aperture, this spectrograph is engineered to deliver precision and adaptability. Its design includes a wide range of interchangeable gratings, slits, and light coupling accessories, making it the perfect choice for general spectroscopy measurements.
This spectrograph is crafted with a compact and rugged design, allowing for both horizontal and vertical mounting positions. This ensures not only portability but also ease of integration into various experimental setups. The Shamrock 163's imaging-configurable platform supports multi-track spectroscopy, enhanced by lens-based accessories that optimize system performance for low cross-talk and simultaneous multi-leg fiber signal acquisition.
The Shamrock 163 offers a large selection of interchangeable gratings, equipped with a simple precision locking mechanism that allows for seamless upgrades. Additionally, users can choose from a variety of fixed slits, with laser-cut precision widths ranging from 10 µm to 200 μm, ensuring precise and customizable measurements tailored to specific needs.
With a calibrated micrometer drive, the Shamrock 163 facilitates simple and rapid wavelength selection, making it a user-friendly tool for researchers. Its compact size, measuring 198 x 216 x 96 mm and weighing just 3.5 kg, makes it a convenient addition to any laboratory setting.
Shamrock 163 - 150 lpmm 800nm Blaze Spectrograph
Specifications |
|
|---|---|
| Monochromator Type: | Czerny-Turner |
| Effective Focal Length: | 163 mm |
| Diffraction Grating: | 150 lines/mm |
| Grating Blaze Wavelength: | 800 nm |
| Spectral Range: | 250 – 2000 nm |
| Linear Dispersion (Avg): | 38.45 nm/mm |
| Spectral Resolution (Avg): | 2.31 nm |
Features
- Compact & Rugged Design: The Shamrock 163 offers both horizontal and vertical mounting positions for increased portability and ease of integration.
- Imaging-Configurable Platform: Designed for multi-track spectroscopy, the lens-based accessories optimize system performance for low cross-talk and simultaneous multi-leg fiber signal acquisition.
- Interchangeable Gratings: Features a wide range of gratings with a simple precision locking mechanism for seamless upgradability.
- Variety of Fixed Slits: Includes interchangeable laser-cut precision slits with widths ranging from 10 µm to 200 μm.
- Large Choice of Light Coupling Interfaces: Offers options including fiber-optics and C-mount microscope couplers.
- Calibrated Micrometer Drive: Ensures simple and rapid wavelength adjustment for precise wavelength selection.
- Versatile Compact Benchtop Spectrograph: The Shamrock 163 is the most compact research-grade Czerny-Turner spectrograph on the market, ideal for general benchtop spectroscopy measurements.
Applications
- General Spectroscopy: Ideal for benchtop spectroscopy measurements due to its compact size and high F/3.6 aperture.
- Multi-Track Spectroscopy: Imaging-configurable platform allows for multi-track spectroscopy with low crosstalk.
- Customizable Wavelength Selection: Calibrated micrometer drive enables simple and rapid wavelength adjustments.
- Interchangeable Gratings: Wide range of gratings with a precision locking mechanism allows for seamless upgradability.
- Variety of Slit Options: Interchangeable laser-cut precision slits with widths from 10 µm to 200 μm.
- Versatile Light Coupling Interfaces: Includes fibre-optics and C-mount microscope couplers for diverse applications.

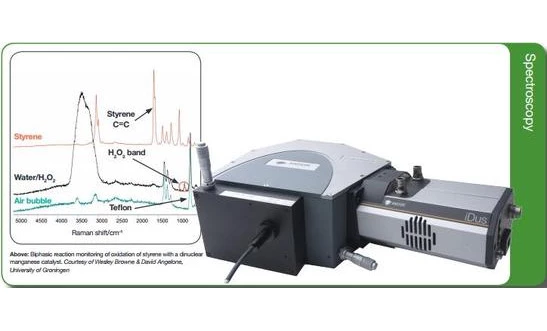

- Research and Development: Used in advanced research such as biphasic reaction monitoring and oxidation studies.

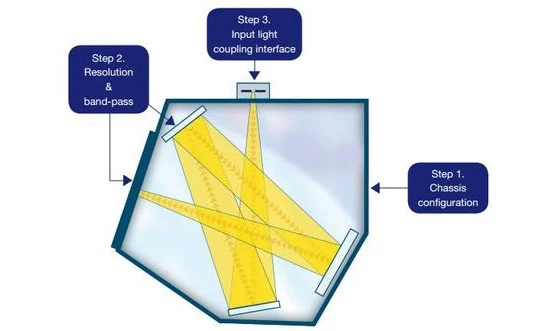

- Customizable System Configuration: Step-by-step configuration allows for tailored setups based on specific needs, including optics coating and software interface selection.
Frequently Asked Questions
The Shamrock 163 is a compact and versatile benchtop spectrograph used for general benchtop spectroscopy measurements.
The Shamrock 163 has a compact and rugged design, an imaging-configurable platform, a wide range of interchangeable gratings, a variety of fixed slits, and a large choice of light coupling interfaces.
The resolution of the Shamrock 163 is 0.25 nm with a Newton DU940 CCD and 1200 l/mm at 500 nm or 2400 l/mm at 300 nm.
To customize the Shamrock 163, you need to select the appropriate chassis configuration, gratings, detector, and input light coupling interface.
The weight of the Shamrock 163 is 3.5 kg or 7.71 lb.
