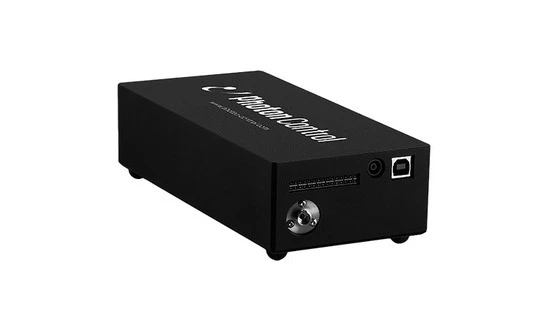

SPM-001-NIR1700S/ NIR2500W
Description
The SPM-001-NIR1700S/NIR2500W optical bench is available with a 140 mm focal length for high resolution applications. Our spectrometers are the only ones equipped with an internal DSP chip capable of handling complex signal processing tasks. It also boasts powerful software based on LabVIEW that can be easily integrated into existing software using one of our development kits
SPM-001-NIR1700S/ NIR2500W
Specifications |
|
|---|---|
| Monochromator Type: | Czerny-Turner |
| Effective Focal Length: | 140 mm |
| Diffraction Grating: | - lines/mm |
| Grating Blaze Wavelength: | - nm |
| Spectral Range: | 900-2500nm |
| Linear Dispersion (Avg): | - nm/mm |
| Spectral Resolution (Avg): | - nm |
| Range (SPM-001-NIR1700S): | 900- 1700 nm |
| Range (SPM-001-NIR2500W): | 900- 2500 nm |
| Detector (SPM-001-NIR1700S): | Hamamatsu G9204 |
| Detector (SPM-001-NIR2500W): | Hamamatsu G9208 |
| Detector Size: | 512 Pixel InGaAs |
| ADC: | 16 Bit |
Features
The SPM-001-NIR1700S/NIR2500W is fully compatible with the SPL
family of light sources, accessories, software development kits and SpecSoft Pro from Photon Control.
Applications
N.B. *Some applications require additional software that is not included with the SPM-001-NIR1700S/ NIR2500W
Mineral Identification
Process Automation Technology (PAT)
Petrochemical Analysis
Laser Characterization and Tuning
Thin Film Thickness Measurement
Moisture Measurement in Wood Fiber
Reflectance, Transmission, Absorption
Cellulose Analysis
Soil Analysis
Pharmeceutical Industry
Chemical Analysis
Alcohol Content Analysis
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Canada
-
Sold by:
-
On FindLight:
since 2016
Frequently Asked Questions
The spectrometer is suitable for a variety of applications, including Mineral Identification, Process Automation Technology (PAT), Petrochemical Analysis, Laser Characterization and Tuning, Thin Film Thickness Measurement, Moisture Measurement in Wood Fiber, Reflectance, Transmission, Absorption, Cellulose Analysis, Soil Analysis, Pharmaceutical Industry, Chemical Analysis, and Alcohol Content Analysis.
Fiber optic patch cords with different core sizes and connectors are available as accessories for the spectrometer. Software Development Kits and SpecSoft Pro are also available at additional costs.
The SPM-001-NIR1700S/NIR2500W optical bench is available with a 140 mm focal length for high resolution applications.
All spectrometers are shipped with SpecSoft display and analysis software for data logging.
The SPM-001-NIR1700S/SPM-001-NIR2500W Spectrometer has a spectral range of 900-2500 nm.
