UV-VIS Miniature/High Resolution/Area Array/TE-Cooling Spectrometer
Description

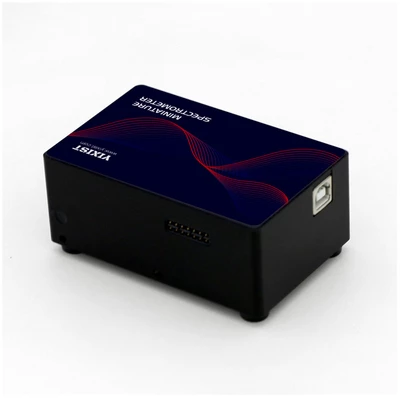

UV-VIS Miniature Spectrometer YSM-8101
YSM-8101 series miniature spectrometers, with a miniature business card-size optical platform, are very convenient to carry. The optimized optical path design enables a 0.35nm-5nm optical resolution. The YSM-8101-02 series adopts more sensitive and higher-quality sensing elements; achieves a dynamic range of 10000:1, an integration time as low as 0.5ms, and a signal-to-noise ratio of 600:1; supports RS232/RS422 communication; has better anti-interference performance; is suitable for both industrial and scientific applications.

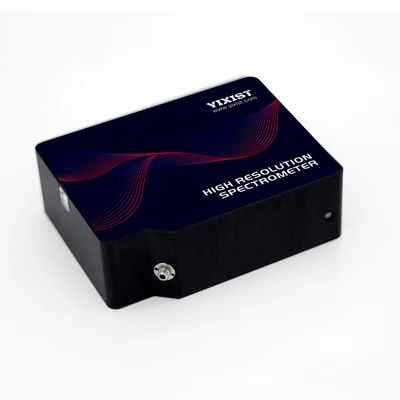

UV-VIS High-Resolution Spectrometer YSM-8102
YSM-8102 series spectrometers, with high-resolution optical-mechanical platforms, are lighter but of better performance (up to 0.06nm optical resolution). Users can obtain different optical resolutions and wavelength responding ranges by selecting different gratings and slits.
YSM-8102-02 spectrometer is equipped with a Hamamatsu S11639 line array detector; achieves a dynamic range of 10000:1, an integration time as low as 0.5ms, and a signal-to-noise ratio of 600:1; supports RS232/RS422 communication; has better anti-interference performance; is suitable for both industrial and scientific applications.
YSM-8102-03 series spectrometers adopt a high-resolution optical-mechanical platform and a Hamamatsu S16010 2048 × 64-pixel area array CCD. They are featured with a high optical resolution (up to 0.1nm), a high S/N ratio (up to 800:1), a high dynamic range (up to 50000:1), and a high sensitivity in the range of 700-1100nm, which make them ideal for NIR laser spectrum analysis. With alterable gratings and slits, YSM-8102-03 can adjust to the different spectral ranges and optical resolutions in Raman spectrum measurements and can better suffice for both industrial and scientific needs.
YSM-8102-06 series high-resolution spectrometers adopt the Hamamatsu 4096-pixel S13496 CMOS detector, whose pixel resolution has increased by one time compared with an S11639 detector. It vastly improves the accuracy of spectrometers and is ideal for LIBS and other laser spectral measurements.
UV-VIS Area Array Spectrometer YSM-8103
YSM-8103 series spectrometers adopt Hamamatsu area array back-illuminated CCD (UV-sensitive or IR-sensitive version). They are very cost-effective for weak spectral measurements. The wavelength range and optical resolution are customizable; the OEM and in-depth customization are supported.
YSM-8103-03 series spectrometers, equipped with Hamamatsu S16010 2048 x 64-pixel area array CCD, have higher sensitivity in 700-1100nm and are suitable for fluorescence and Raman spectral measurement. YSM-8103-04 series spectrometers, equipped with Hamamatsu S10420 2048 x 64-pixel area array CCD have higher sensitivity in 200-500nm and are suitable for water quality and gas monitoring and fluorescence spectral measurement.
UV-VIS Area Array TE-Cooling Spectrometer YSM-8104
YSM-8104 series high-performance spectrometers adopt Hamamatsu back-illuminated TE-cooling area array CCD (1024 and 2048-pixel versions). They have research-grade sensitivity. The optimized low-noise circuit, 18-bit A/D converter, and excellent CT optical structure vastly improve the S/N ratio, sensitivity, and thermal stability of the spectrometers, which are an ideal choice for Raman and fluorescence spectral measurement. YSM-8104-07 series spectrometers adopt Hamamatsu S7031-1006s series 1024 x 58-pixel TE-cooling CCD which is of excellent sensitivity. YSM-8104-08 series spectrometers adopt Hamamatsu S10141-1107S-01 series 2048 x 122-pixel TE-cooling CCD, which is of higher pixel resolution.
UV-VIS Miniature/High Resolution/Area Array/TE-Cooling Spectrometer
Specifications |
|
|---|---|
| Monochromator Type: | Czerny-Turner |
| Effective Focal Length: | 50 mm |
| Diffraction Grating: | 600,1200,1800 lines/mm |
| Grating Blaze Wavelength: | 400, 500,560,850 nm |
| Spectral Range: | 200-1100nm |
| Linear Dispersion (Avg): | 9 nm/mm |
| Spectral Resolution (Avg): | 0.33~10 nm |
| Model: | YSM-8101/8102/8103/8104 |
| Size（mm): | 94×60×34.5, 140×110×46, 165×110×38, 190×120×66 |
| Weight(Kg): | 0.3/0.7/1.5 |
| Wavelength Range(nm): | 180-1100 |
| Sensitive Range(nm): | 200-1100 |
| Wavelength Range Width(nm): | 700, 350, 233 optional |
| Optical Resolution（nm): | Optimal~0.35/0.1/0.06 |
| Pixel Resolution(nm): | Optimal~0.04/0.02 |
| Fiber Connector: | SMA905 |
| Detector: | Hamamatsu S11639 2048 Line Array CMOS, Toshiba TCD1304Line Array CCD, Hamamatsu S10420-01/S16010/S7031-1006s/S10141-1107S-01 Series area array back-illuminated TE-cooling CCD |
| Pixel: | 2048, 3648, 2048x64 |
| Per Pixel(µm): | 14x200, 8x200, 14x14 |
| S/N Ratio: | 1000/800/600/300:1 full spectrum |
| Linearity: | >99% |
| Stray Light: | <0.05/0.1% (600/435/400 nm) |
| A/D Resolution: | 16/18 bit |
| Integration Time: | 0.5/1/4/8ms - 10/65/3600s |
| Dynamic Range: | 50000/10000/300 : 1 |
| Trigger Modes: | Software, hardware, synchronous |
| Power Consumption: | 250/500 mA, 5V DC |
| Ambient Temperature: | 5°C -35°C (25°C recommended) |
| Communication: | USB2.0/USB2.0 (12Mbps), Rs232 (115200bps)/RS232/RS422 |
| Operating System: | Win XP, 7, 8, 10, 11 |
| Fixing Hole: | 4xM3 holes on the bottom, 2xM3 holes on the side |
| Power Supply: | USB, 5V DC, 2A |
Features
UV-VIS Miniature Spectrometer YSM-8101
Business card size, easy to carry.
Crossed asymmetric C-T optical path structure with interference filter eliminates secondary diffraction.
SMA905 fiber connector for easy connection to other devices
Customizable wavelength range and optical resolution.
USB 2.0 data transmission and power supply; support RS232/RS422 communication; support multiple trigger modes Powerful software with automatic peak wavelength and bandwidth calculation functions.
Support secondary development— bottom and side fixing holes facilitate system integration.
UV-VIS High-Resolution Spectrometer YSM-8102
YSM-8102-02: Hamamatsu S11639 line array detector; Up to 0.06nm optical resolution
YSM-8102-03: Hamamatsu S16010 2048 x 64-pixel area array CCD; up to 0.1nm optical resolution; Excellent sensitivity to 700nm-1100nm
YSM-8102-06: Hamamatsu 4096-pixel S13496 CMOS detector; up to 4096 pixels resolution
Compact size and easy operation.
Crossed asymmetric C-T optical structure with interference filters eliminates secondary diffraction.
SMA905 fiber connector for easy connection to other devices Customizable wavelength range and optical resolution.
USB 2.0 for data transmission and power supply
Support RS232/RS422 and multiple trigger modes.
Powerful software with automatic peak wavelength and bandwidth calculation functions.
Support OEM and in-depth customization.
UV-VIS Area Array Spectrometer YSM-8103
Area array back-illuminated CCD.
Compact size for system integration.
Filters eliminate secondary and advanced diffractions.
Replaceable slit design.
Support USB 2.0 and RS232/485.
USB 2.0 for data transfer and power supply.
Powerful software with automatic peak wavelength and bandwidth calculation functions.
Support OEM and in-depth customization.
UV-VIS Area Array TE-Cooling Spectrometer YSM-8104
Hamamatsu back-illuminated TE-cooling area array CCD with 1000:1 S/N ratio.
18-bit A/D conversion with 100000:1 dynamic range (typical) Replaceable slit design (5μm, 10μm, 25μm, 50μm, 100μm, and 200μm) 1024 pixels and 2048 pixels versions.
Up to 24μm x 24μm pixel size.
Crossed asymmetric C-T optical structure and interference filters eliminate secondary diffraction.
SMA905 fiber connector for easy connection.
Customizable wavelength range and optical resolution.
USB 2.0 data transmission and power supply; support RS232/RS422 and trigger modes.
Powerful software with automatic peak wavelength and bandwidth calculation functions.
Support OEM and in-depth customization.
Applications
UV-VIS Miniature Spectrometer YSM-8101
Online water and gas quality monitoring
Transmissivity, absorbance, and concentration measurement
Reflectivity and color measurement
LED chromaticity measurement
Solar energy spectroscopy testing
Fluorescence spectroscopy measurement
Raman spectroscopy measurements
Laser spectroscopy measurement
UV-VIS High-Resolution Spectrometer YSM-8102
YSM-8102-02
Laser’s central wavelength, FWHM, and stability measurement LED measurement
LIBS applications
Solar spectra analysis
Fluorescence spectra analysis Color measurement
YSM-8102-03
Raman spectrum
Fluorescence
Laser’s CWL and line width
700-1100nm weak spectral measurement
YSM-8102-06
Laser central wavelength, FWHM and stability measurement
LIBS multi-channel monitoring
UV-VIS Area Array Spectrometer YSM-8103
Raman and fluorescence
Water and gas quality monitoring
UV-VIS weak spectral measurement
UV-VIS Area Array TE-Cooling Spectrometer YSM-8104
Raman
Fluorescence
UV-VIS weak spectral measurement
