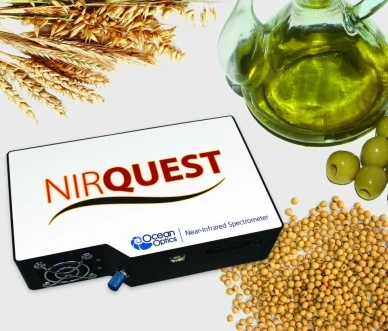

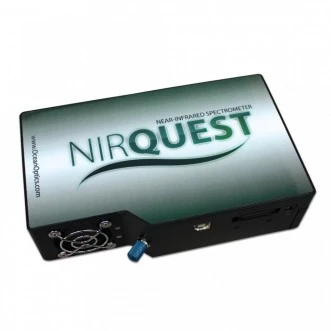

NIRQuest512-2.2 Rent or Buy
Description
Presidents Choice! This NIRQuest 512-2.2 NIR spectrometer is our favorite NIRQuest unit, great range, great sensitivity, best value.
For rent or purchase! Rent the NIRQuest512-2.2 by the week or month, validate your application and the performance of the system before you make a purchase! 50% of the rental fees can be applied towards the purchase of new equipment (up to 50% of the sales price).
Small footprint fiber optic, USB spectrometer features a cooled enhanced InGaAs 512 element detector array for spectroscopic measurements in the 900 – 2200nm wavelength region. The 25 micron slit yields optical resolutions on the order of 5nm FWHM Includes Spectrasuite software and power supplies.
Robust– deep thermoelectric cooling down to -20 °C for low dark current
Fast – great for applications with chemometric models
Modular – configurable with a range of light sources, fibers, accessories for your specific application
NIRQuest512-2.2 Rent or Buy
Specifications |
|
|---|---|
| Wavelength Range (reflectance): | 900-2200nm |
| Resolution: | 5 nm |
| Minimum Scan Time: | .001 sec |
| Radiometric Calibration: | Factory calibrated irradiance |
| Rental Period: | by week or month |
| Rent Credits: | 50% towrads purchase |
Features
Engineering Specifications
NIRQuest512-2.2
Dimensions: 182 x 110 x 47 mm
Weight: 1.18 kg (without power supply)
Detector: Hamamatsu G9206-512W
InGaAs linear array
Wavelength range: 900-2200 nm w/Grating NIR2
Integration time: 1 ms – 1 s
Dynamic range: 7.5 x 106 (system); 10000:1 for a single acquisition
Signal-to-noise ratio: 10000:1 @ 100 ms integration
Dark noise: 6 RMS counts @ 100 ms; 12 RMS counts @ 250 ms
Grating – standard: Grating NIR2, 100 l/mm, 900-2050 nm
Standard slit: 25 µm
User changeable slits:
10 µm, 50 µm, 100 µm and 200 µm
(or no slit)
Order-sorting: OF1-RG830 longpass NIR filter (optional)
Optical resolution: ~5 nm FWHM w/25 µm slit
Fiber optic connector: SMA 905
Applications
radiometery - can be equipped with a fiber optic cosine corrector (for irradiance) or an integrating sphere (total power or irradiance)
reflectometry - fiber optic reflection probe or integrating sphere
aborbance/transmission - sample holders for cuvettes and/or flat substrates
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2019
Frequently Asked Questions
The wavelength range of the NIRQuest512-2.2 spectrometer is 900-2200 nm.
The optical resolution of the NIRQuest512-2.2 spectrometer is approximately 5 nm FWHM with a 25 µm slit.
Yes, the NIRQuest512-2.2 spectrometer features a user-changeable slit design with options of 10 µm, 50 µm, 100 µm, and 200 µm, or no slit.
The NIRQuest512-2.2 spectrometer is suitable for applications such as radiometry, reflectometry, and absorbance/transmission measurements.
Yes, the NIRQuest512-2.2 spectrometer is available for rent or purchase, with 50% of the rental fees applicable towards the purchase of new equipment (up to 50% of the sales price).
