Pack of 5 Gold SERS Substrates (5 mm x 5 mm Active Area) – Ultra-Sensitive Surface Enhanced Raman Scattering Substrates with Fluorescence Quenching & Broad Excitation Range
Description
A pack of 5 gold SERS substrates with a 5 mm by 5 mm active area.
Part Number: P-Au-SERS-5mm

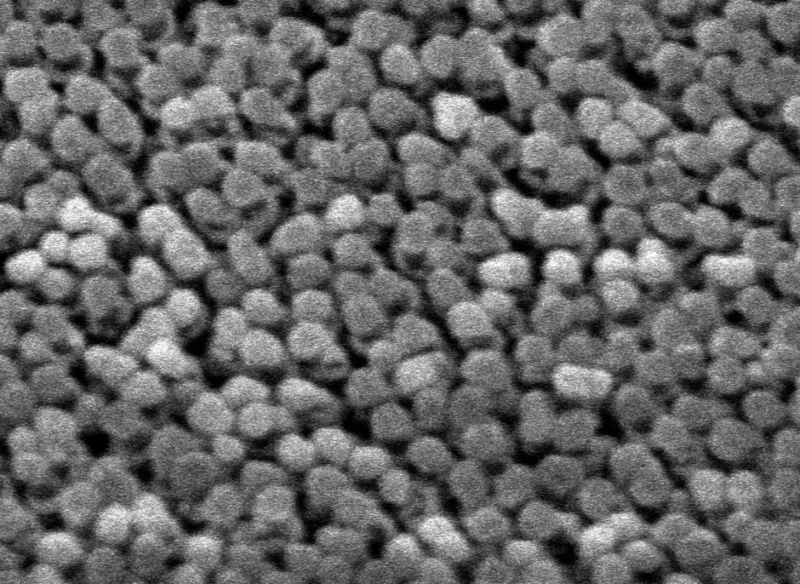

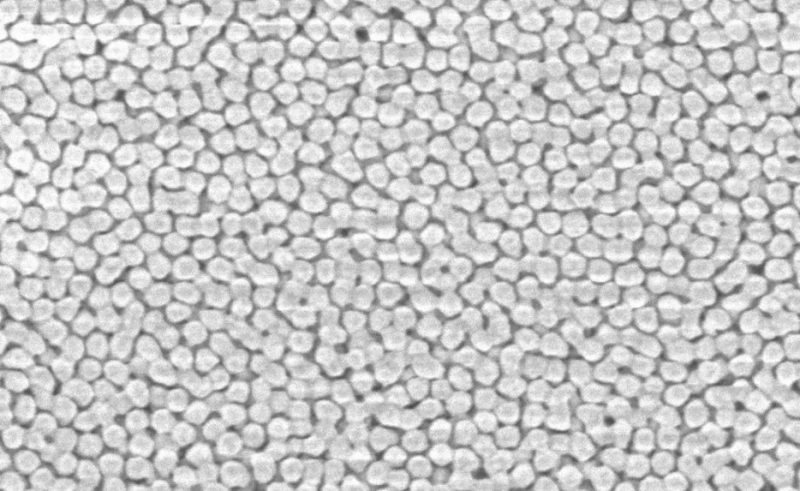

Nefer Ka’s gold SERS substrates are engineered for ultra-sensitive Surface Enhanced Raman Scattering (SERS) spectroscopy, offering high reproducibility, uniform signal, and minimal background noise. Fabricated using a scalable, patented technology, these nanocaps-based SERS substrates enable molecular detection at extremely low concentrations (nano-molar sensitivity demonstrated). Ideal for chemical analysis, biosensing, environmental testing, and forensic applications, Nefer Ka’s gold nanocaps SERS substrates provide consistent, high-quality Raman signal enhancement, making them a valuable tool for researchers and industry professionals.

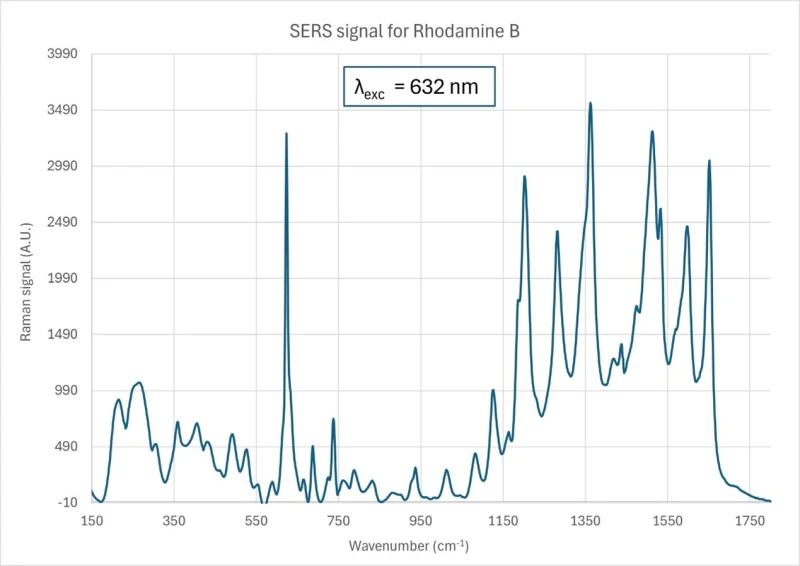

Fluorescence quenching: One of the key advantages of Nefer Ka’s Surface Enhanced Raman Spectroscopy (SERS) substrates is fluorescence quenching, which allows for higher signal-to-noise ratios even at short excitation wavelengths. As the intensity of a Raman signal is inversely proportional to the excitation wavelength (λ_exc) to the fourth power (I_Raman∝1⁄(λ_exc^4) ), the use of a shorter excitation wavelength is essential to obtain a large signal-to-noise ratio. However, as the excitation wavelength decreases, fluorescence from the analyte under test becomes problematic. Nefer KA’s SERS substrates resolve this problem by quenching the fluorescence while operating at a shorter wavelength. Raman measurements of Rhodamine B and Rhodamine 6G using Nefer Ka's substrates at the excitation wavelength (λ_exc = 632 nm) exhibit minimal fluorescence.
Broad excitation bandwidth: Nefer Ka’s SERS substrates can be excited within a wavelength continuum that spans the range for from 500 nm to 800 nm.

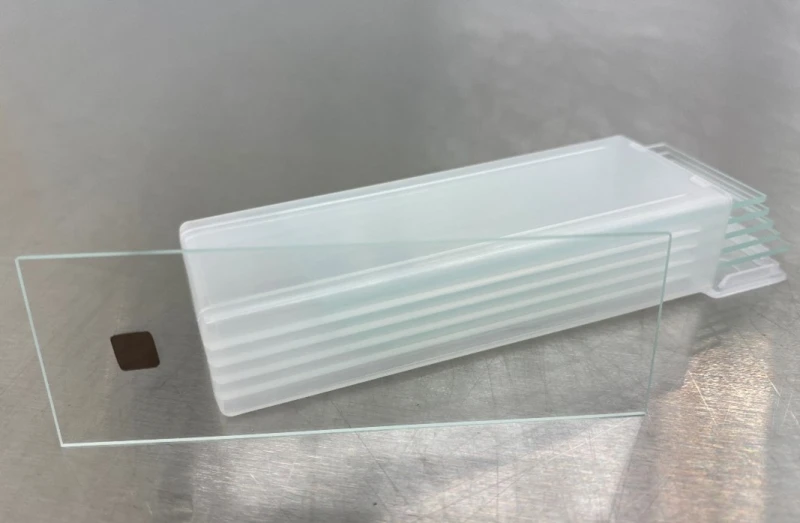

Flexible substrates: Nefer Ka’s pack of 5 SERS substrates are produced on a flexible polymer and are then affixed to a rigid glass microscope slide for ease of handling. If required, the SERS substrates can instead be affixed onto a larger flexible polymer substrate.
Pack of 5 Gold SERS Substrates (5 mm x 5 mm Active Area) – Ultra-Sensitive Surface Enhanced Raman Scattering Substrates with Fluorescence Quenching & Broad Excitation Range
Specifications |
|
|---|---|
| Consumable Type: | SERS substrate |
| Active Material: | Gold Nanocaps |
| Active Area: | 5 mm x 5 mm |
| Substrate Material: | Flexible polymer adhered to a rigid glass microscope slide |
| Laser Wavelength Compatibility: | 532 nm, 633 nm, 785 nm (Broadband range: 500 nm – 800 nm) |
| Detection Sensitivity: | ppm to ppb (parts-per-million to parts-per-billion) |
| Fluorescence Quenching: | Yes – minimizes background fluorescence for clear Raman signals |
| Sampling Methods: | Drop deposition |
| Maximum Laser Power Density: | 20 W/cm² |
| Dimensions: | 75 mm x 25 mm x 1.1 mm (L x W x H) |
| Stability: | Up to 1 year from date of purchase |
| Production Method: | Patented scalable process |
| Packaging: | Pack of 5 single-use substrates |
Features
- Ultra-Sensitive SERS Performance: Enables nano-molar molecular detection with high reproducibility.
- Fluorescence Quenching SERS Technology: Reduces interference for clearer Raman spectra at short excitation wavelengths.
- Broadband Excitation Compatibility: Works with laser wavelengths 532 nm, 633 nm, and 785 nm.
- Customizable & Flexible Design: Available in custom sizes and geometries, with flexible polymer options.
- Scalable Production: Manufactured using a patented, high-volume scalable process for consistent quality.
- Uniform & Low Background Signal: Ensures high reproducibility and low signal distortion.
- Easy Handling & Application: Mounted on a microscope slide for stability, with hydrophilic surface ideal for drop deposition (2-5 μL recommended).
- Long Shelf Life: Stable for up to 1 year from the date of purchase.
- Dimensions: 75 x 25 x 1.1 mm (width x height x thickness).
- SERS active surface: 5 x 5 mm (width x height).
- Active metal: Au (gold).
- Substrate material: Polymer adhered to glass.
- Sampling method: Drop deposition.
- Laser wavelengths: 532 nm, 633 nm & 785 nm.
- Sensitivity: ppm to ppb.
- Usage: Single-use substrate
Explore Other Nefer Ka SERS Substrates:
Pack of 5 Gold Nanocaps SERS Substrate (10 mm x 10 mm Active Area) – For Ultra-Sensitive Surface-Enhanced Raman Spectroscopy by Nefer Ka – Ideal for larger active area applications with ultra-sensitive detection.
Applications
Nefer Ka’s SERS substrates (pack of 5) can be used in:
- Chemical & Biological Sensing: Detect trace levels of analytes, biomolecules, and contaminants.
- Pharmaceutical & Medical Research: Enable drug analysis, disease detection, and biomarker identification.
- Environmental Monitoring: Identify pollutants, toxins, and hazardous substances at ultra-low concentrations.
- Forensic & Security Applications: Enhance detection of explosives, narcotics, and counterfeit materials.
- Material Science & Nanotechnology Research: Ideal for investigating plasmonic effects and nanoscale interactions.
-
Made by:
Nefer Ka, LLC
-
Made in:
United States
-
Ships in:
3 days
-
Delivers to:
United States
-
Shipping:
$11.00
-
Warranty:
-
Returns:
Ask a Question
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2025
Frequently Asked Questions
SERS substrates enhance Raman signals for ultra-sensitive molecular detection in applications such as chemical analysis, biosensing, forensic testing, and environmental monitoring.
The nanocaps-based design effectively suppresses fluorescence, allowing for clear Raman spectra at short excitation wavelengths.
Nefer Ka’s SERS substrates support 532 nm, 633 nm, and 785 nm laser excitations, covering a broad spectral range.
Nefer Ka’s SERS substrates enable ultra-sensitive detection, with demonstrated nano-molar sensitivity (ppm to ppb range).
No, Nefer Ka’s gold SERS substrates are single use to ensure optimal signal enhancement and prevent contamination.
These substrates remain stable and effective for up to 1 year from the date of purchase when stored properly.
