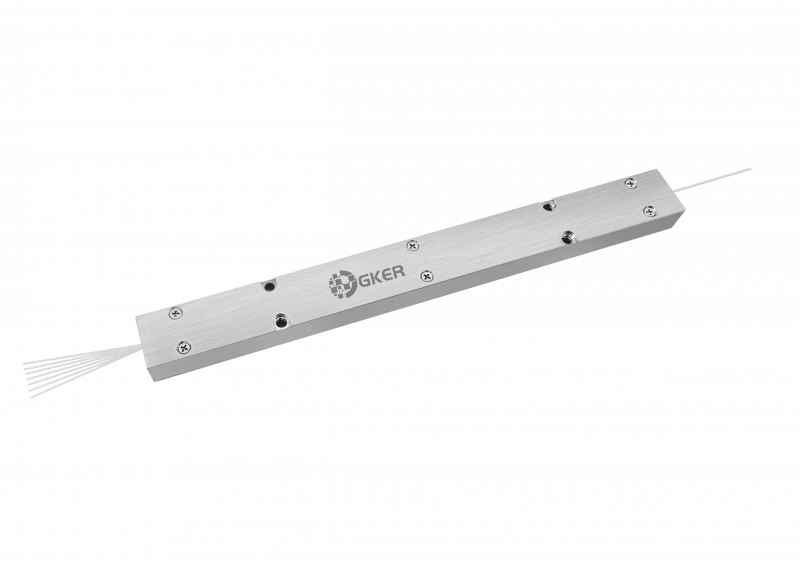

2.5 kW (6+1)×1 Backward Pump Combiner (HPPC Series)
Description
The 2.5 kW (6+1)×1 Backward Pump Combiner, a flagship offering from the HPPC Series, represents a pinnacle of innovation and engineering prowess in the realm of optical fiber components. Engineered to perfection, this combiner stands as a testament to cutting-edge technology, offering unparalleled performance and reliability for demanding applications in fiber laser systems and amplifiers.
Crafted with precision and attention to detail, this backward pump combiner facilitates the seamless integration of up to six multimode pump diodes, harnessing their collective power to deliver a robust, high-intensity output. Its unique design allows for the simultaneous transmission of a kW-class signal laser in the reverse direction, enabling a diverse range of applications across various industries.
One of the standout features of this combiner is its low signal insertion loss, ensuring minimal power dissipation during the combining process. This translates to maximum efficiency and performance, making it an ideal choice for high-power fiber laser systems where every watt counts.
Furthermore, the combiner boasts high coupling efficiency, thanks to advanced coupling mechanisms that optimize the transfer of power between the pump diodes and the output fiber. This results in enhanced overall system efficiency and performance, even in the most demanding operating conditions.
Employing proprietary fiber tapering techniques, this combiner sets new standards for reliability and longevity. Its robust construction and meticulous engineering ensure long-term stability and performance consistency, allowing for uninterrupted operation in critical applications.
In terms of applications, the versatility of this combiner knows no bounds. From industrial fiber laser systems to fiber amplifiers and material processing applications, it finds its place in a wide array of optical setups where high-power pumping and signal transmission are paramount.
In essence, the 2.5 kW (6+1)×1 Backward Pump Combiner from the HPPC Series is more than just a component – it's a cornerstone of innovation, reliability, and performance excellence in the world of fiber optics. With its unmatched capabilities and robust design, it empowers engineers and researchers to push the boundaries of what's possible in fiber laser technology.
2.5 kW (6+1)×1 Backward Pump Combiner (HPPC Series)
Specifications |
|
|---|---|
| Splitting Ratio: | Other |
| Central Wavelength: | 1080 nm |
| Power Handling: | > 100W |
| Return Loss: | 50 dB |
| Product Type: | Backward Pump (6+1)×1 |
| Pump Wavelength: | 915 nm |
| Signal Wavelength: | 1080 nm |
| Fiber Type For Pump Input: | MM-S200/220-22A-HP or MM-S220/242-22A-HP |
| Fiber Type For Signal Input: | LMA-GDF-20/400-M |
| Fiber Type For Signal Output: | LMA-GDF-20/400-M |
| Max. Signal Insertion Loss: | 0.3 dB |
| Typ. Pump Efficiency: | 98 % |
| Min. Pump Efficiency: | 97 % |
| Max. Input Pump Power: | 300 ×6 W |
| Max. Input Signal Power: | 2500 W |
Features
- Low Signal Insertion Loss: The combiner minimizes signal loss during the merging process, ensuring optimal output efficiency
- High Coupling Efficiency: With advanced coupling mechanisms, it maximizes the efficiency of power transfer between pump diodes and output fiber
- Proprietary Fiber Tapering Technique: Incorporates innovative fiber tapering techniques for enhanced performance and reliability
- High Power Backward Pump: Capable of handling high-power backward pumping applications with superior efficiency
- kW Class Fiber Laser: Enables the transmission of high-power signals, ideal for applications requiring robust laser outputs
Applications
- Industrial Fiber Laser Systems: Suitable for industrial-grade fiber laser systems requiring high-power pumping and signal transmission capabilities
- Fiber Amplifiers: Ideal for use in fiber amplifiers where efficient power combining and signal transmission are essential
- Fiber Lasers for Material Processing: Well-suited for fiber lasers used in material processing applications such as cutting, welding, and engraving
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2024
Frequently Asked Questions
A backward pump combiner is a specialized optical component used in fiber laser systems. It combines the power from multiple pump diodes and transfers it into a double-cladding output fiber while simultaneously transmitting a signal laser in the reverse direction. This allows for efficient power coupling and signal transmission in high-power fiber laser systems.
By efficiently combining the power from multiple pump diodes, the combiner maximizes the overall efficiency of the fiber laser system. This results in higher output power and improved performance, making it ideal for demanding applications that require high laser power.
Yes, custom configurations are available to meet specific wavelength, power, and fiber type requirements. Customers can specify their desired parameters for tailored solutions.
The combiner is designed to operate within a temperature range of 0 to +65°C and can be stored in temperatures ranging from -40 to +85°C. This ensures reliable performance in a variety of environmental conditions.
Yes, technical support is provided to assist with installation, integration, and troubleshooting of the backward pump combiner. Customers can contact our support team for assistance.
