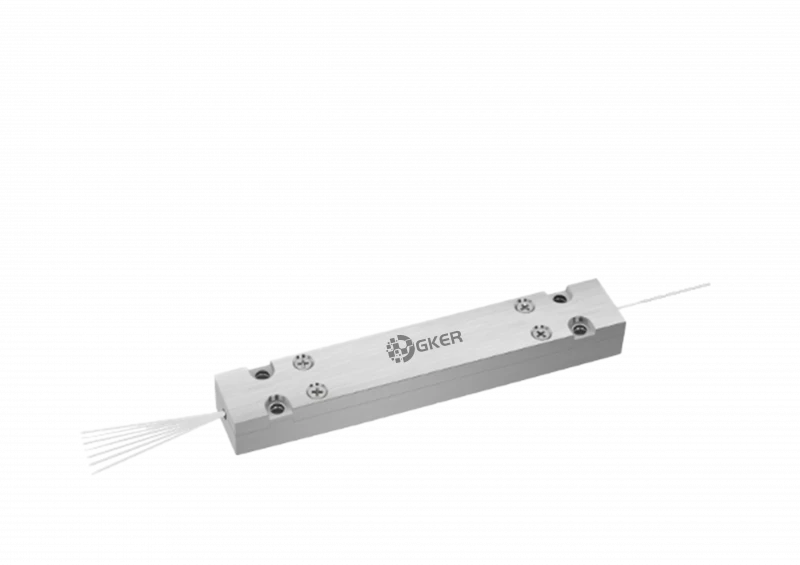

(6+1)×1 Multimode Pump and Signal Combiner (MMPC Series)
Description
The (6+1)×1 Multimode Pump & Signal Combiner (MMPC Series) is a cutting-edge solution designed to enhance the efficiency and performance of high-power fiber laser and amplifier systems. This advanced combiner is capable of merging the output from six multimode pump diodes and one signal channel into a single output fiber, ensuring minimal signal loss and high pump efficiency.
Engineered with a proprietary tapering and packaging technique, the MMPC Series offers unparalleled reliability and efficiency across a broad wavelength range of 900 to 1000 nm. The device is specifically designed to handle high power levels, making it suitable for demanding applications in fiber lasers, high power EDFAs (Erbium-Doped Fiber Amplifiers), and CATV amplifiers.
The combiner's design includes custom configurations to meet various specific requirements, ensuring optimal performance for different applications. The high coupling efficiency and low signal channel insertion loss (< 0.70 dB) make it an ideal choice for integrating high power pump sources with minimal degradation of the signal.
Constructed to operate in a wide range of environmental conditions, the MMPC Series combiner can function within operating temperatures from -5°C to +65°C and storage temperatures from -40°C to +85°C. Its robust construction allows it to manage high input pump power up to 300W (6×50W), making it a versatile and reliable component in any high-power fiber optic system.
(6+1)×1 Multimode Pump and Signal Combiner (MMPC Series)
Specifications |
|
|---|---|
| Splitting Ratio: | Other |
| Central Wavelength: | 1064 nm |
| Power Handling: | > 10W |
| Return Loss: | 50 dB |
| Product Type: | (6 + 1) × 1 |
| Pump Wavelength Range: | 900 - 1000 nm |
| Signal Wavelength Range: | 1064 nm |
| Fiber Type For Input (Pump Channel): | Nufern 105/125 (0.15 NA or 0.22 NA) |
| Fiber Type For Input (Signal Channel): | HI 1060 or 20/130 DC, NA = 0.08/0.46 |
| Fiber Type For Output: | 20/130 DC, NA = 0.08/0.46 |
| Max. Input Pump Power: | 6 × 50 W |
| Signal Channel Insertion Loss: | <0.7 dB |
| Typ. Signal Channel Insertion Loss: | 0.5 dB |
| Min. Pump Efficiency: | 93 dB |
| Typ. Pump Efficiency: | 95 dB |
| Package Dimensions: | 70 (L) × 12 (W) × 8 (H) mm |
Features
- High Power Transfer Efficiency: Combines power from six multimode pump diodes and one signal channel with high efficiency. Minimizes power loss during combining process.
- Wide Wavelength Range Compatibility: Operates effectively across a wide spectrum of wavelengths, specifically from 900 to 1000 nm for pump sources and 1064 nm for the signal channel. Accommodates various laser and optical amplifier configurations.
- Advanced Fiber Tapering and Packaging Technique: Utilizes proprietary techniques for fiber tapering and package sealing. Enhances reliability and robustness under varying environmental conditions.
- Custom Configurations Available: Offers flexibility in design to meet specific customer requirements. Supports tailored solutions for diverse applications in laser systems and fiber optics.
- Low Signal Channel Insertion Loss: Ensures minimal signal degradation with a maximum insertion loss of less than 0.70 dB. Facilitates high-quality signal transmission in optical networks.
- High Pump Efficiency: Achieves typical pump efficiency of up to 95%. Maximizes power conversion and utilization in high-power fiber laser and amplifier applications.
- Durable Construction: Built to handle high input pump powers, up to 6 × 50W, without compromising performance. Designed for reliability in demanding industrial and scientific environments.
- Wide Operating Temperature Range: Operates reliably across temperatures ranging from -5°C to +65°C. Suitable for deployment in various climates and operational conditions.
- Secure Storage Parameters: Safely stores within a temperature range of -40°C to +85°C. Ensures longevity and performance consistency over extended periods.
Applications
- Fiber Lasers and Amplifiers: Enhances the efficiency and power output of multimode fiber lasers and amplifiers. Ideal for applications requiring high-power laser sources in industrial cutting, welding, and materials processing.
- Telecommunications Infrastructure: Supports high-power optical signal transmission in telecommunications networks. Facilitates the amplification and transmission of signals over long distances with minimal loss.
- Scientific Research and Development: Enables advancements in photonics and optics research. Provides reliable components for testing and development of new laser technologies.
- Optical Fiber Communications: Improves signal integrity and power efficiency in optical communication systems. Facilitates high-speed data transmission in telecommunication and data center networks.
- Defense and Aerospace Applications: Supports critical defense and aerospace applications requiring robust and reliable laser sources. Enhances communication and sensor capabilities in aerospace and military operations.
- Medical Laser Systems: Used in medical applications such as laser surgery and therapeutic treatments. Provides precise and controlled laser power delivery for medical professionals.
- Industrial Laser Processing: Facilitates high-speed laser cutting, welding, and marking in industrial manufacturing processes. Improves productivity and precision in automotive, electronics, and semiconductor industries.
- CATV (Cable Television) Signal Amplification: Enhances the signal quality and reliability in cable television networks. Supports the distribution of high-definition video and broadband services to subscribers.
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2024
Frequently Asked Questions
A (6+1)×1 Multimode Pump & Signal Combiner is a specialized optical device designed to combine the power from six multimode pump diodes and one signal channel into a single output fiber. It ensures efficient power transfer with minimal loss.
The model number indicates parameters such as signal wavelength, pump wavelength, fiber type for input and output, fiber length, and package type. Contact our sales team for assistance in selecting the suitable configuration for your specific requirements.
Ensure the operating temperature range of -5°C to +65°C and storage temperature range of -40°C to +85°C is maintained for optimal performance and longevity of the product.
Yes, we offer custom configurations to accommodate different fiber types, wavelengths, and power requirements. Contact our sales team to discuss your customization needs.
PM fibers maintain the polarization state of light, ensuring stable and reliable performance in applications where polarization control is critical, such as fiber lasers and telecommunications.
The MMPC Series is packaged in dimensions of 70 mm (L) × 12 mm (W) × 8 mm (H), ensuring compact size and easy integration into optical systems.
Handle the device with care to avoid damage to fibers and connectors. Ensure proper termination and alignment during installation to minimize insertion losses.
