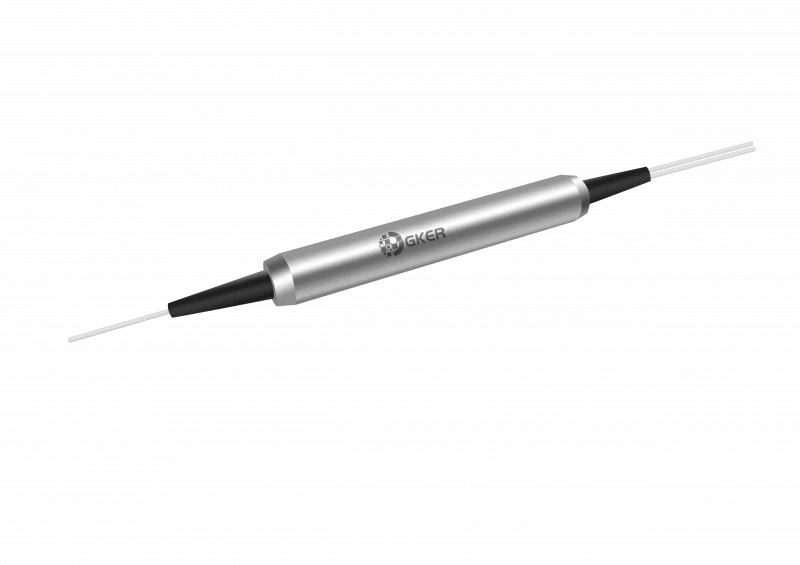

Polarization Beam Combiner Splitter-PBC-PBS
Description
The Polarization Beam Combiner/Splitter is a compact high performance lightwave
component that combines two orthogonal polarization signals into one output fiber.
The most common application is to combine the light of two pump lasers into one
single fiber to double the pump power in EDFA or Raman Amplifier. The device can
also be used as a beam splitter.
Polarization Beam Combiner Splitter-PBC-PBS
Specifications |
|
|---|---|
| Splitting Ratio: | Other |
| Central Wavelength: | 1310, 1480, 1550 nm |
| Power Handling: | Not Specified |
| Return Loss: | 50 dB |
| Center Wavelength (λc): | 1310, 1480, 1550 nm |
| Operating Wavelength Range: | λc ± 40 nm |
| Typ. Insertion Loss: | 0.4 0.5 dB |
| Max. Insertion Loss: | 0.6 0.7 dB |
| Min. Extinction Ratio (for Splitter Only): | 22 20 dB |
| Min. Return Loss: | 50 dB |
| Min. Directivity: | 50 dB |
| Max. Optical Power (Continuous Wave): | 500 mW |
| Fiber Type: | PM Panda Fiber for Ports 1 & 2, SMF-28 or PM Panda Fiber for Port 3 - |
| Max. Tensile Load: | 5 N |
| Operating Temperature: | - 5 to + 70 ℃ |
| Storage Temperature: | - 40 to + 85 ℃ |
