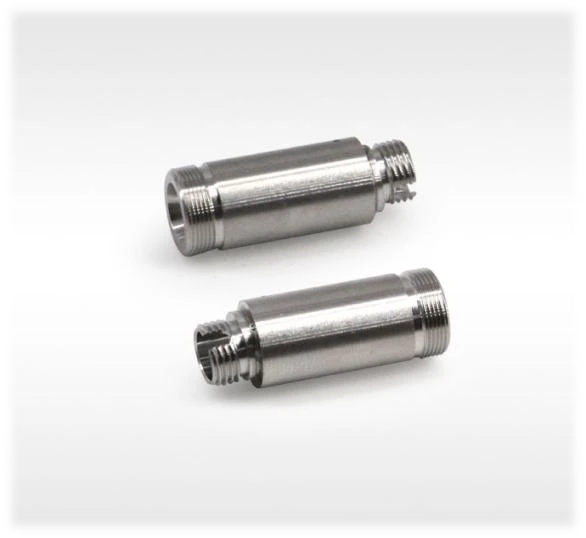

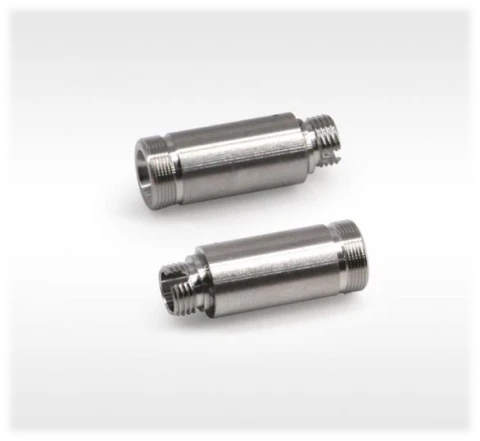

Free-standing Fixed Focus Aspheric Fiber Optic Collimator 12mm Focus Distance FFL-780-2.59-12-FA
Description
The fixed focus aspheric fiber optical collimator developed by CSRayzer is used to collimate the light output by the optical fiber cable of FC/APC or FC/PC connector. The aspheric lens has chromatic aberration, and its effective focal length (EFL) is related to the wavelength, which provides diffraction limit at the design wavelength and has good achromatic effect. It is very suitable for optical fiber coupling applications. Each collimator is pre-aligned before leaving the factory, and in order to reduce surface reflection, both sides of each lens are coated with antireflection films. The collimator is compact in structure design and convenient for integration and installation. At present, it can provide typical wavelengths such as 405nm, 532nm, 543nm, 633nm, 780nm, 852nm, 980nm, 1064nm and 1550nm according to customer requirements.
Free-standing Fixed Focus Aspheric Fiber Optic Collimator 12mm Focus Distance FFL-780-2.59-12-FA
Specifications |
|
|---|---|
| Center Wavelength: | 780 nm |
| Single Insertion Loss: | ≤0.5 dB |
| Beam Waist Spot Diameter: | 2.59±0.2 mm |
| Return Loss: | ≥55 dB |
| Working Distance: | 0~500 mm |
| Focal Distance: | 12 mm |
Features
Collimate Light in Fiber-to-Free Space Applications
Applications
With a focal length of 12mm and an alignment wavelength of 780 nm, it provides precise beam shaping. Ideal for laser applications requiring precise focusing and collimation without spectral distortion.
