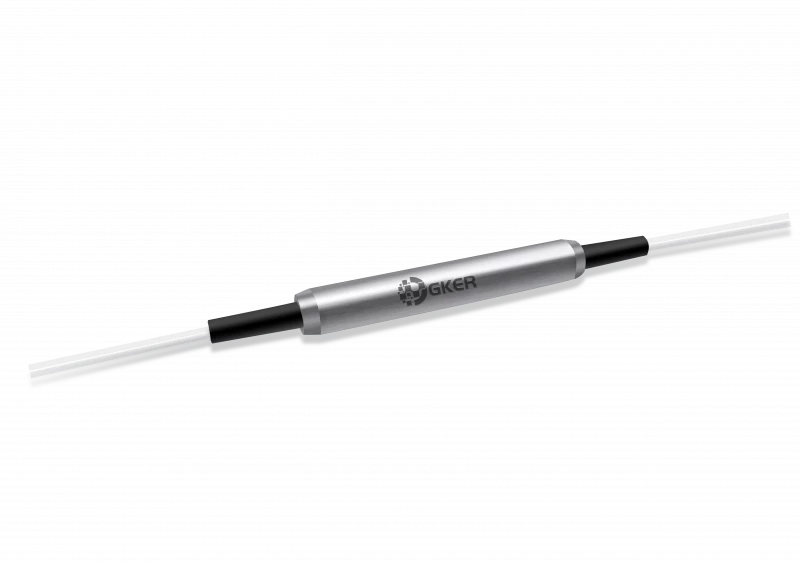

Multimode Fiber Filter Coupler-MMFC
Description
The GKER Multimode Fiber Filter Coupler Series delivers outstanding performance with its minimal excess loss, broad operating wavelength range, and high stability. Designed for precision and reliability, this coupler is available in both 1 × 2 and 2 × 2 configurations to suit various needs. It efficiently handles wavelengths of 1310 nm and 1550 nm, with a tolerance of ± 40 nm, making it versatile for different applications.
Engineered to support various tap ratios including 5 ± 1.0% and 50%, or specified ratios, the coupler ensures optimal signal distribution. Its high uniformity, ranging from 0.6 to 0.8 dB, guarantees consistent performance across different setups. Compatible with multimode fibers such as 62.5/125 µm, 50/125 µm, and 105/125 µm, it adapts to various fiber types and environments.
The coupler operates reliably within a broad temperature range of -5°C to +70°C and withstands storage conditions from -40°C to +85°C. With a maximum continuous wave optical power handling of up to 300 mW, it is well-suited for demanding applications in LAN networks, multimode fiber communication systems, fiber sensors, and testing instruments.
Multimode Fiber Filter Coupler-MMFC
Specifications |
|
|---|---|
| Type: | Other / Not specified |
| Configuration: | 1x2 |
| Splitting Ratio: | Other / Not specified |
| Wavelength: | 1310 1550 nm |
| Fiber Type: | 50/125 μm |
| Connector Type: | Other / Not specified |
| Housing Material: | Other / Not specified |
| Center Wavelength: | 1310, 1550 nm |
| Operating Wavelength Range: | ± 40 nm |
| Configuration: | 1 × 2 2 × 2 - |
| Max. Excess Loss: | 0.7 1.0 dB |
| Max. Uniformity: | 0.6 0.8 dB |
| Tap Ratio: | 5 ± 1.0, 50, or specified % |
| Min. Return Loss: | 35 dB |
| Max. Optical Power (Continuous Wave): | 300 mW |
| Fiber Type: | Multimode Fiber, 62.5/125, 50/125, 105/125 µm N |
| Max. Tensile Load: | 5 - |
| Operating Temperature: | -5 to +70 ℃ |
Features
- Very Low Excess Loss: Designed for minimal signal loss, ensuring efficient power distribution
- Broad Operating Wavelength Range: Supports wavelengths of 1310 nm and 1550 nm with a tolerance of ± 40 nm
- Flexible Configurations: Available in both 1 × 2 and 2 × 2 configurations
- Various Tap Ratios: Offers multiple tap ratios including 5 ± 1.0% and 50%, or specified ratios
- High Uniformity: Provides consistent performance with maximum uniformity of 0.6 to 0.8 dB
- Durable Fiber Options: Compatible with multimode fibers such as 62.5/125 µm, 50/125 µm, and 105/125 µm
- Broad Operating Temperature Range: Functions reliably from -5°C to +70°C, with storage capabilities extending from -40°C to +85°C
- High Optical Power Handling: Supports continuous wave optical power up to 300 mW
Applications
- LAN Networks: Ideal for integration into local area networks for efficient signal management
- Multimode Fiber Communication Systems: Enhances performance in multimode fiber communication setups
- Fiber Sensors: Suitable for use in various fiber optic sensor applications
- Testing Instruments: Essential for testing and calibration in fiber optic measurement tools
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2024
Frequently Asked Questions
The GKER Multimode Fiber Filter Coupler is designed to manage and distribute optical signals with minimal excess loss. It is used to couple light between different fibers or channels in multimode fiber communication systems, fiber sensors, and testing instruments.
The coupler supports operating wavelengths of 1310 nm and 1550 nm, with a tolerance of ± 40 nm.
The coupler is available in two configurations: 1 × 2 and 2 × 2. This allows for flexibility in how the coupler is integrated into different optical systems.
The coupler supports various tap ratios, including 5 ± 1.0% and 50%, or specified ratios, depending on your application needs.
The coupler can handle a maximum continuous wave optical power of up to 300 mW.
The coupler is compatible with multimode fibers such as 62.5/125 µm, 50/125 µm, and 105/125 µm.
The coupler operates reliably within a temperature range of -5°C to +70°C and can be stored in temperatures ranging from -40°C to +85°C.
The coupler is engineered with high precision to minimize signal loss, providing efficient power distribution and high performance in optical systems.
Yes, the coupler can be customized with specified tap ratios, connector types, fiber jackets, and fiber cores to meet the specific requirements of your application.
