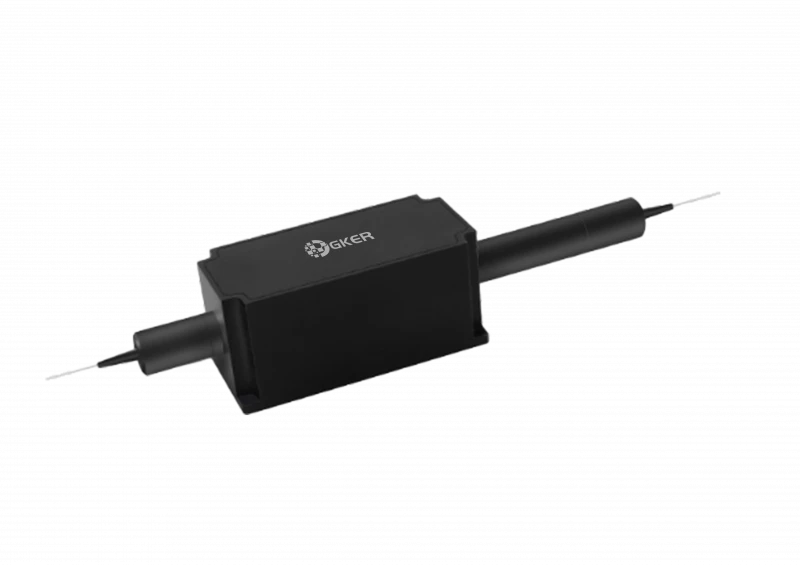

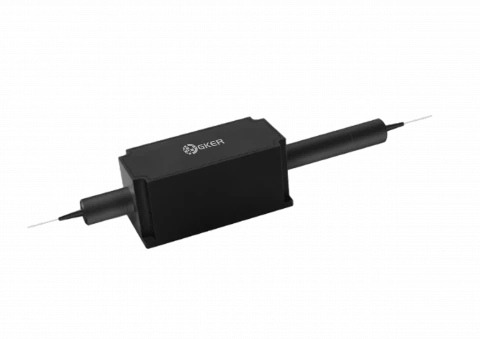

1064nm 100W In-Line Optical Isolator
Description
Improve your fiber laser systems and instrumentation setups with the 100 W In-Line Isolator. Engineered to perfection and designed to exceed expectations, this isolator represents new standards in optical component technology. From its robust construction to its advanced features, every aspect of the 100 W In-Line Optical Isolator is carefully designed to deliver uncompromising performance and reliability in even the most demanding applications.
Featuring a compact yet highly efficient design, this isolator is optimized for space-constrained environments without sacrificing functionality. With its low insertion loss and low reflection characteristics, it ensures minimal signal degradation and maximum signal integrity, enabling smooth and efficient operation of your optical systems.
At the heart of the 100 W In-Line Isolator is its high power handling capability, capable of handling up to 100 W of optical power with ease. Whether you're working with high-power fiber lasers or demanding instrumentation setups, this isolator provides the robust protection and signal isolation needed to maintain system performance and reliability.
Built with proprietary thermal management technology, the 100 W In-Line Isolator ensures consistent performance even in the face of extreme operating conditions. Its wide operating wavelength range, from 1064 nm with a ±10 nm wavelength range, provides versatility and compatibility with a variety of laser systems and applications.
In addition to its exceptional performance characteristics, the 100 W In-Line Isolator is designed with ease of installation and maintenance in mind. Its intuitive design and comprehensive specifications make it easy to integrate into existing optical setups and ensure hassle-free operation for years to come.
1064nm 100W In-Line Optical Isolator
Specifications |
|
|---|---|
| Type Of The Device: | Isolator |
| Operating Wavelength: | 1064 nm |
| Max Power: | 100 W |
| Min Isolation: | 28 dB |
| Center Wavelength (λc): | 1064 nm |
| Operating Wavelength Range: | λc ± 10 nm |
| Min. Isolation, 23 ℃, All Polarization States, At λc: | 28 dB |
| Max. Optical Average Power: | 50 or 100 W |
| Max. Peak Power For Ns Pluse: | 20 kW |
Features
- Low Insertion Loss and Low Reflection: Designed to minimize signal degradation, ensuring high-fidelity transmission in demanding optical setups
- High Power Handling: Capable of handling up to 100 W of optical power, making it suitable for high-power laser applications
- Proprietary Thermal Management: Incorporates innovative thermal management techniques to maintain stability and reliability even under extreme operating conditions
- Wide Operating Wavelength Range: Operating at 1064 nm with a ±10 nm wavelength range, providing versatility for various laser systems
- High Isolation: Offers high isolation levels to effectively suppress back reflections and maintain signal purity
- Excellent Return Loss: Provides exceptional return loss characteristics to enhance system performance and reliability
Applications
- Fiber Laser Systems: Ideal for use in fiber laser systems where high power handling and low insertion loss are critical for efficient operation
- Instrumentation Setups: Well-suited for instrumentation setups requiring precise signal transmission and protection against back reflections
- Telecommunications: Can be integrated into telecommunications networks to ensure reliable signal transmission and prevent signal degradation
- Research and Development: Perfect for research and development labs working on high-power laser applications and optical experiments
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2024
Frequently Asked Questions
An in-line isolator is an optical component designed to prevent unwanted reflections from traveling back through the optical system. It works by allowing light to pass through in one direction while blocking it in the opposite direction, effectively isolating the transmitted signal from any reflected light.
The 100 W In-Line Optical Isolator is capable of handling optical powers of up to 100 watts, making it suitable for use in high-power fiber laser systems and other demanding applications.
The benefits of using the 100 W In-Line Optical Isolator in fiber laser systems include: Minimization of signal degradation due to reflections; Protection of optical components from damage caused by back reflections; Maintenance of signal integrity and system stability; and Enhanced performance and reliability of the overall system
The 100 W In-Line Optical Isolator is designed for easy integration into existing optical setups, and its intuitive design minimizes the need for special installation procedures. Routine maintenance may involve periodic cleaning of the isolator's optical surfaces to ensure optimal performance.
The operating temperature range for the 100 W In-Line Isolator is from +10°C to +50°C, while the storage temperature range is from -10°C to +60°C. These temperature ranges ensure reliable operation and storage of the isolator under varying environmental conditions.
Yes, the 100 W In-Line Isolator is compatible with various fiber jacket types and lengths, offering flexibility to suit different application requirements. Customers can specify their preferred fiber jacket type and length when ordering the isolator.
Yes, the 100 W In-Line Isolator is suitable for use in telecommunications applications, providing effective signal isolation and protection against reflections in optical communication systems.
The warranty terms for the 100 W In-Line Isolator may vary depending on the manufacturer. It is recommended to consult the product documentation or contact the manufacturer for specific warranty information.
