1064nm 50w High Power Polarization Insensitive Circulator
Description

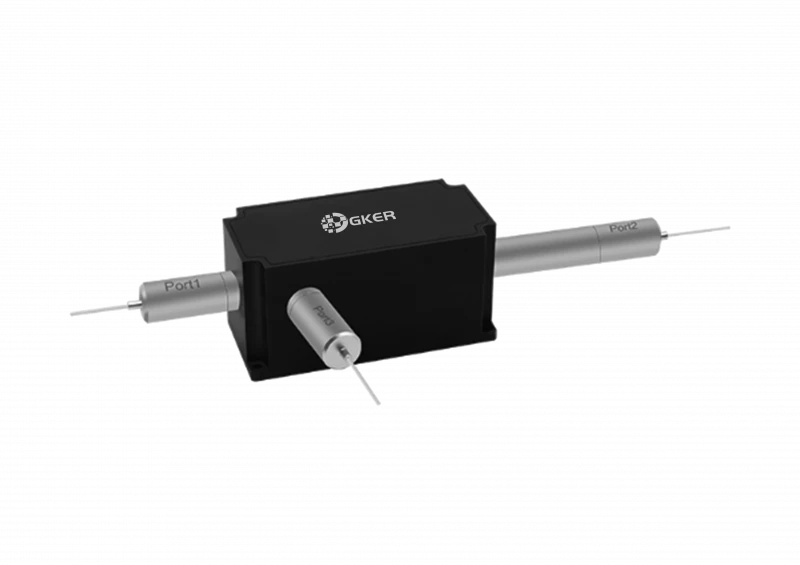

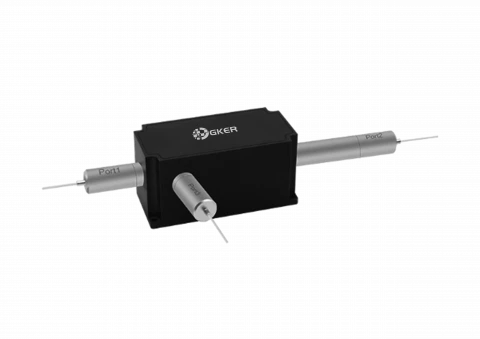

The GKER Photonics High Power Polarization Insensitive Circulator (GK-HPCIR Series) is a premier optical component designed to meet the rigorous demands of fiber laser and high-performance instrumentation applications. Operating at a central wavelength of 1064 nm with a tolerance of ±10 nm, this circulator ensures efficient signal routing with minimal loss and exceptional isolation. Engineered to handle high optical power, the circulator features a maximum average optical power capacity of 50 W and can endure peak power of up to 20 kW for nanosecond pulses.
This circulator excels in delivering low insertion loss, with typical values of just 0.5 dB at 23°C, and maintains high isolation levels, up to 25 dB, across all polarization states. The device is also distinguished by its low polarization-dependent loss, ensuring consistent performance irrespective of light polarization. With a minimum crosstalk of 45 dB and a return loss of 45 dB, the circulator guarantees excellent signal integrity and minimal interference. The rugged design supports a wide operating temperature range of +10°C to +50°C and is built to withstand storage temperatures as low as 0°C and as high as +60°C.
1064nm 50w High Power Polarization Insensitive Circulator
Specifications |
|
|---|---|
| Type Of The Device: | Circulator |
| Operating Wavelength: | 1064 nm |
| Max Power: | 50 10 W |
| Min Isolation: | 25 dB |
| Center Wavelength (λc): | 1064 nm |
| Operating Wavelength Range: | λc ± 10 nm |
| Min. Isolation, 23 ℃, All Polarization States: | 25 dB |
| Typ. Insertion Loss, 23 ℃: | 0.5 dB |
| Max. Insertion Loss, 23 ℃: | 0.8 dB |
| Max. Polarization Dependent Loss: | 0.2 dB |
| Min. Crosstalk: | 45 dB |
| Min. Return Loss: | 45 dB |
| Max. Average Optical Power Port1→Port2 Port 2→ Port 3: | 50 10 W |
| Max. Peak Power For Ns Pulse: | 20 KW |
| Max. Tensile Load: | 5 N |
| Fiber Type: | specified by ordering info - |
| Operating Temperature: | + 10 to +50 ℃ |
Features
- Polarization Insensitivity: Consistent performance across all polarization states
- Low Insertion Loss: Typical insertion loss of 0.5 dB at 23°C
- High Isolation: Provides minimum isolation of 25 dB for optimal signal separation
- High Power Handling: Supports up to 50 W of continuous power and 20 kW peak power
- High Return Loss: Ensures minimal signal reflection with a return loss of 45 dB
- Durable Design: Operates reliably within a temperature range of +10°C to +50°C
Applications
- Fiber Laser Systems: Ideal for high-power fiber laser setups requiring precise signal routing
- High-Power Instrumentation: Suitable for instrumentation where power handling and performance are critical
- Optical Signal Routing: Effective in applications needing efficient and reliable signal distribution
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2024
Frequently Asked Questions
The central wavelength is 1064 nm with a tolerance of ±10 nm.
The typical insertion loss is 0.5 dB at 23°C.
It provides a minimum isolation of 25 dB across all polarization states.
The circulator can handle up to 50 W of continuous optical power and 20 kW for nanosecond pulses.
The minimum crosstalk is 45 dB.
The return loss is 45 dB.
The maximum tensile load is 5 N.
The fiber types include Corning HI 1060, Nufern FUD-3584, and Nufern LMA-GDF-20/130-M.
The operating temperature range is +10°C to +50°C.
The storage temperature range is 0°C to +60°C.
