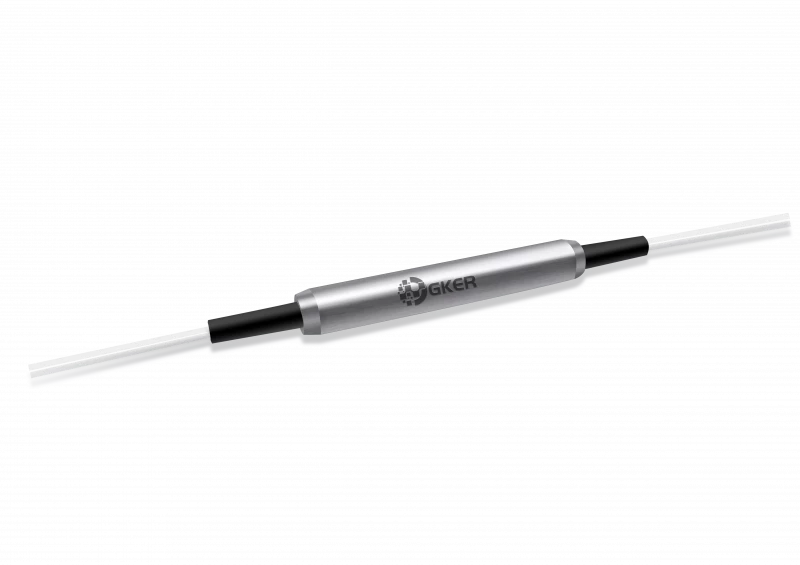

1310-1550nm 3-Port Polarization Maintaining Circulator
Description
The Polarization Maintaining Circulator is a compact high performance lightwave
component that routes incoming signals from Port 1 to Port 2, and incoming Port
2 signals to Port 3. The component provides high isolation, low insertion loss, high
extinction ratio, and excellent environment stability.
1310-1550nm 3-Port Polarization Maintaining Circulator
Specifications |
|
---|---|
Type Of The Device: | Circulator |
Operating Wavelength: | 1310 1550 nm |
Max Power: | 300 W |
Min Isolation: | 40 dB |
Center Wavelength (λc): | 1310, 1550 nm |
Operating Wavelength Range: | λc ± 30 nm |
Max. Insertion Loss P1 To P2, P2 To P3: | 1.0 dB |
Insertion Loss P1 To Tap: | 20 - 22 dB |
Min. Isolation, 23 ℃, P2 To P1, P3 To P2: | 40 dB |
Min. Extinction Ratio: | 20 dB |
Min. Crosstalk P1 To P3: | 50 dB |
Min. Return Loss: | 50 dB |
Max. Optical Average Power: | 300 mW |
Max. Peak Power For Ps Pluse: | 10 kW |
Max. Tensile Load: | 5 N |
Operating Temperature: | - 5 to + 70 ℃ |
