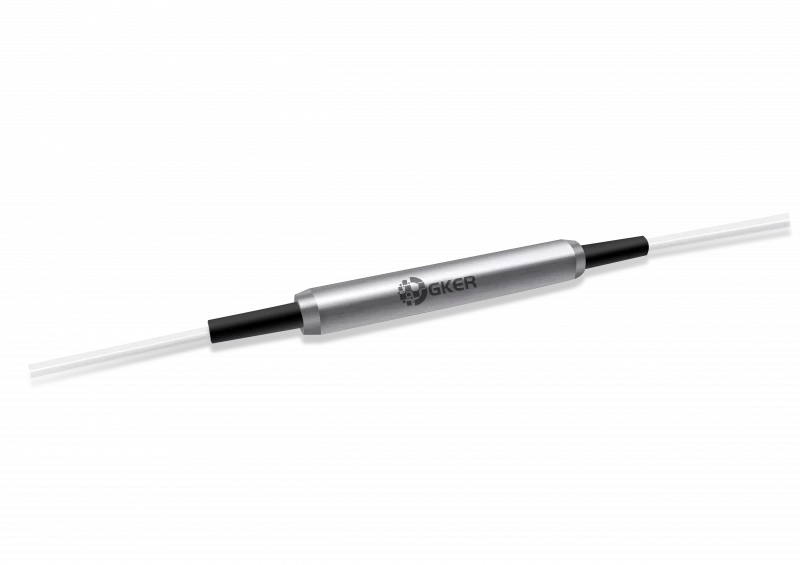

1310-1550nm 4-Port Polarization Insensitive Mini Fiber Optic Circulator
Description
The 4-Port Mini Fiber Circulator is a compact, high performance lightwave component
that routes incoming signals from Port 1 to Port 2, Port 2 to Port 3, Port 3 to Port 4.
The component provides high isolation, low insertion loss, low PDL, low PMD and
excellent environmental stability. It is widely used in combination with fiber gratings
and other reflective components in DWDM systems, high speed systems and bi-direction communication systems.
1310-1550nm 4-Port Polarization Insensitive Mini Fiber Optic Circulator
Specifications |
|
|---|---|
| Type Of The Device: | Circulator |
| Operating Wavelength: | 1310 1550 nm |
| Max Power: | 300 W |
| Min Isolation: | 38 dB |
| Center Wavelength (λc): | 1310, 1550 nm |
| Operating Wavelength Range: | λc ± 20 nm |
| Transmitting Direction: | 1→2, 2→3, 3→4 - |
| Typ. Insertion Loss: | 0.7 dB |
| Max. Insertion Loss: | 0.9 dB |
| Min. Isolation, 23 ℃: | 38 dB |
| Min. Crosstalk: | 50 dB |
| Min. Return Loss: | 50 dB |
| Max. Polarization Dependent Loss, 23 ℃: | 0.2 dB |
| Max. Polarization Mode Dispersion: | 0.1 ps |
| Max. Optical Power (Continuous Wave): | 300 mW |
| Max. Tensile Load: | 5 N |
| Fiber Type: | SMF-28 Fiber - |
| Operating Temperature: | 0 to + 70 ℃ |
| Storage Temperature: | - 40 to + 85 ℃ |
