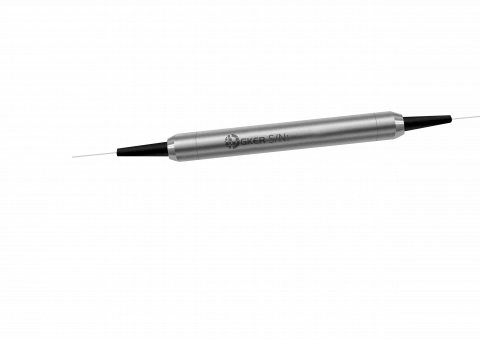

1310/1480/1550nm Mini RC Fiber Isolator
Description
The Mini RC Fiber Isolator (MRCI Series) represents a breakthrough in compact fiber optic technology, meticulously engineered to meet the evolving demands of modern telecommunications, data centers, industrial automation, and beyond. Crafted with precision and innovation, this isolator is designed to optimize space utilization without compromising on performance or reliability. With its ultra-compact form factor and robust construction, the MRCI Series sets a new standard for miniaturized fiber optic components, offering exceptional isolation, low insertion loss, and high return loss across a broad range of operating conditions.
Whether deployed in telecom networks, data centers, industrial environments, or research laboratories, the Mini RC Fiber Isolator delivers unparalleled performance and versatility, making it an indispensable component for today's most demanding applications.
1310/1480/1550nm Mini RC Fiber Isolator
Specifications |
|
|---|---|
| Type Of The Device: | Isolator |
| Operating Wavelength: | 1310, 1480, 1550 nm |
| Max Power: | 0.3 W |
| Min Isolation: | 25 dB |
| Center Wavelength (λc): | 1310, 1480, 1550 nm |
| Max. Optical Power (Continuous Wave): | 300 mW |
Features
- Compact Design: The Mini RC Fiber Isolator features a remarkably compact design, making it ideal for applications where space is at a premium
- Low Insertion Loss: With a typical insertion loss of only 0.20 dB, this isolator ensures minimal signal degradation and maximum efficiency
- High Isolation: Achieve superior signal isolation with a typical peak isolation of 55 dB, effectively eliminating crosstalk and interference.
- Excellent Return Loss: The isolator boasts a minimum return loss of 52 dB, ensuring efficient management of signal reflections
- Wide Operating Temperature Range: Designed to operate reliably in temperatures ranging from -5 to +70 ℃, making it suitable for a variety of environmental conditions.
- Premium Grade Option: Choose from premium-grade (Grade P) or standard-grade (Grade A) options to meet specific performance requirements
- Single and Dual Stage Configurations: Available in both single-stage and dual-stage configurations to accommodate diverse application needs
- Polarization Insensitive: The isolator maintains consistent performance across all polarization states, ensuring reliable operation in any orientation
- High Power Handling: Capable of handling continuous wave optical power up to 40 mW, making it suitable for high-power applications
- Robust Construction: Constructed with high-quality materials and precision manufacturing processes, ensuring long-term reliability and durability
- Flexible Connector Options: Choose from a variety of connector types, including FC/UPC, FC/APC, SC/UPC, and SC/APC, to suit your specific installation requirements.
- Customizable Fiber Length: Tailor the fiber length to your application with options ranging from 1.0 m to meet your specific project needs
- Compatible Fiber Type: Designed for compatibility with RC SMF Fiber (Mode Field
- Diameter: 10.35 μm @ 1550 nm), ensuring seamless integration into existing fiber optic systems
Applications
- Telecommunications Networks: Ensure reliable data transmission and reception in fiber optic communication systems, including long-haul networks, metro networks, and access networks
- Data Centers: Facilitate efficient and uninterrupted data transfer in high-density server environments, minimizing latency and maximizing network performance
- Industrial Automation: Support real-time monitoring and control of manufacturin processes using fiber optic sensors, enhancing operational efficiency and productivity.
- Biomedical Devices: Enable optical signal transmission in medical imaging and diagnostic equipment, facilitating accurate and timely patient diagnostics
- Aerospace and Defense: Provide reliable signal transmission in space-constrained aircraft and military platforms, ensuring mission-critical communications
- Research Laboratories: Support experimentation and data collection in optics and photonics research, enabling breakthrough discoveries and advancements
- Distributed Fiber Optic Sensing: Enable continuous monitoring of critical infrastructure such as pipelines, power cables, and railways, enhancing safety and reliability
- Optical Fiber Test Systems: Ensure the quality and performance of optical components and systems, facilitating compliance testing and quality assurance processes
- Fiber Laser Systems: Power high-performance fiber laser systems for industrial, medical, and scientific applications, delivering precision and reliability in laser processing tasks
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2024
Frequently Asked Questions
A Mini RC Fiber Isolator is a compact optical component designed to control the transmission of light in fiber optic systems. It operates on the principle of Faraday rotation, where light traveling through a magneto-optic material experiences rotation of polarization, allowing transmission in one direction while blocking it in the opposite direction.
The Mini RC Fiber Isolator is ideal for a wide range of applications, including telecommunications networks, data centers, industrial automation, biomedical devices, aerospace, defense, research laboratories, distributed fiber optic sensing, optical fiber test systems, and fiber laser systems.
When selecting a Mini RC Fiber Isolator, consider factors such as the operating wavelength, desired isolation level, insertion loss, return loss, operating temperature range, connector type, fiber type, and fiber length. Additionally, assess your specific application requirements and performance objectives to choose the most suitable isolator configuration and grade.
Yes, the Mini RC Fiber Isolator can be customized to meet specific project requirements, including connector type, fiber length, and performance grade. Contact our sales team to discuss your customization needs and receive personalized assistance.
The Mini RC Fiber Isolator is backed by a standard warranty against defects in materials and workmanship. Please refer to our warranty policy for detailed terms and conditions.
Installation and maintenance instructions for the Mini RC Fiber Isolator are provided in the product documentation. Follow the recommended procedures for handling, installation, and ongoing maintenance to ensure optimal performance and longevity of the isolator.
