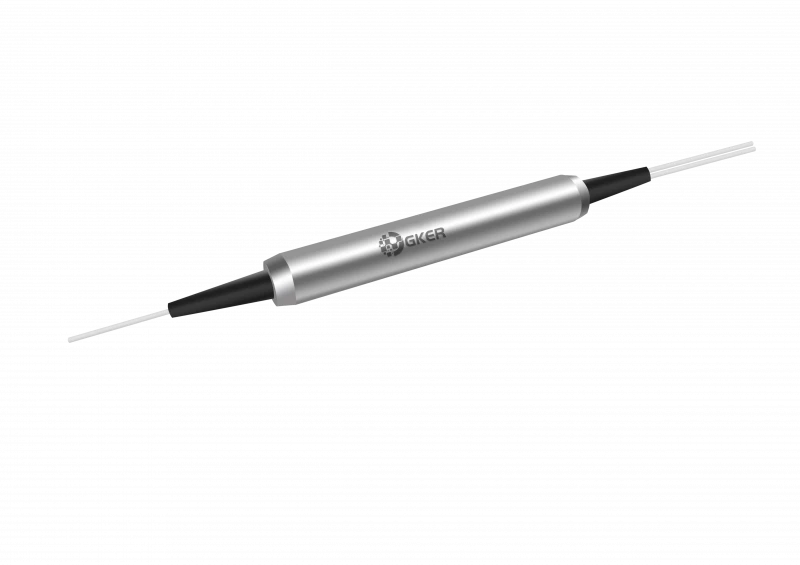

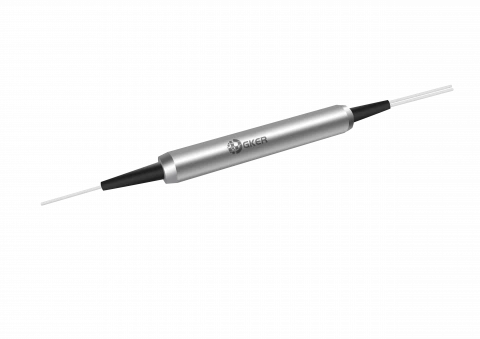

1310/1480/1550nm Polarization Maintaining Tap Isolator
Description
Experience unparalleled signal monitoring and control capabilities with the Polarization Maintaining Tap Isolator (PMTI Series). This cutting-edge optical component combines the functionality of a tap coupler and a polarization-sensitive isolator into a single, compact package, revolutionizing the way signals are managed in fiber optic systems. With its high Extinction Ratio (ER) and ultra-low insertion loss, the PMTI Series sets a new standard for signal fidelity and integrity, making it the ideal choice for a wide range of applications in telecommunications, fiber optic networks, research, and more.
Crafted with precision engineering and built to deliver exceptional performance, the PMTI Series empowers users with the ability to monitor and control signals with unmatched precision and reliability. Its wide operating wavelength range, robust construction, and high optical power handling capacity make it suitable for deployment in diverse environments, ensuring seamless and reliable operation even in the most demanding conditions.
Whether you're optimizing performance in fiber amplifier systems, ensuring reliable data transmission in telecommunications networks, or conducting groundbreaking research in optical communications, the PMTI Series is your go-to solution for precise signal management and control. Elevate your optical setup with the PMTI Series and unlock a new realm of possibilities in signal monitoring and control.
1310/1480/1550nm Polarization Maintaining Tap Isolator
Specifications |
|
|---|---|
| Type Of The Device: | Isolator |
| Operating Wavelength: | 1310, 1480, 1550 nm |
| Max Power: | 0.3 W |
| Min Isolation: | 30 dB |
| Center Wavelength (λc): | 1310, 1480, 1550 nm |
| Operating Wavelength Range: | λc ± 15 nm |
| Tap Ratio: | 1 ± 0.2, 2 ± 0.4, 4 ± 0.8, 5 ± 1.0, 10 ± 2.0 % |
| Min. Isolation, λc ± 10 Nm, 23 ℃, All Polarization States: | Single stage: 30, Dual Stage: 48 dB |
| Min. Extinction Ratio: | 20 dB |
| Max. Optical Power (Continuous Wave): | 300 mW |
Features
- Integrated Design: Seamlessly integrates tap coupler and polarization-sensitive isolator for efficient signal monitoring and control
- High Extinction Ratio (ER): Ensures exceptional signal purity and integrity, minimizing signal degradation
- Ultra-Low Insertion Loss: Maintains signal strength and fidelity by minimizing signal attenuation
- Wide Operating Wavelength Range: Supports wavelengths of 1310 nm, 1480 nm, and 1550 nm, providing versatility for various optical setups
- High Optical Power Handling: Capable of handling up to 300 mW of continuous wave optical power, ensuring reliable performance in demanding environments
- Robust Construction: Designed for durability and reliability, suitable for use in diverse operating conditions
Applications
- Fiber Amplifiers: Enables precise signal monitoring and management in fiber amplifier systems, optimizing performance and efficiency
- Telecommunications: Facilitates accurate signal monitoring and control in telecommunications networks, ensuring reliable data transmission
- Fiber Optic Networks: Essential for maintaining signal integrity and purity in fiber optic networks, enhancing overall network performance
- Instrumentation: Suitable for various instrumentation applications requiring precise signal management and control
- Research and Development: Provides a versatile platform for research and development activities in optical communications, supporting innovation and advancement in the field
- Data Centers: Supports efficient signal monitoring and management in data center environments, ensuring seamless data transmission and reliability
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2024
Frequently Asked Questions
A Tap Isolator combines the functionalities of a tap coupler and a polarization-sensitive isolator into a single compact unit. While a regular isolator only allows light to pass through in one direction while blocking it in the reverse direction, a Tap Isolator also provides a tap output for signal monitoring purposes.
The PMTI Series offers high Extinction Ratio (ER) and ultra-low insertion loss, ensuring superior signal fidelity and integrity. Its integrated design and wide operating wavelength range make it versatile for various applications in fiber optic systems.
The PMTI Series supports wavelengths of 1310 nm, 1480 nm, and 1550 nm, covering commonly used wavelengths in optical communications.
Yes, the PMTI Series is capable of handling up to 300 mW of continuous wave optical power, making it suitable for use in demanding environments.
The PMTI Series is compatible with PM Panda Fiber for input and output ports, ensuring optimal performance and reliability.
The PMTI Series is ideal for applications where precise signal monitoring and control are required, such as fiber amplifier systems, telecommunications networks, fiber optic networks, instrumentation, research, and data centers.
Yes, the PMTI Series offers various options for configuration, including stage, wavelength, coupling ratio, connector type, fiber jacket, fiber length, and working axis, allowing for customized solutions tailored to specific requirements.
The PMTI Series operates within a temperature range of -5 to +70 degrees Celsius, ensuring reliable performance across a wide range of environmental conditions.
The PMTI Series is packaged with dimensions of Φ5.5 ± 0.1 mm for input, tap, and output, with lengths of 55 ± 1 mm and 35 ± 1 mm, ensuring convenient installation and integration into optical setups.
