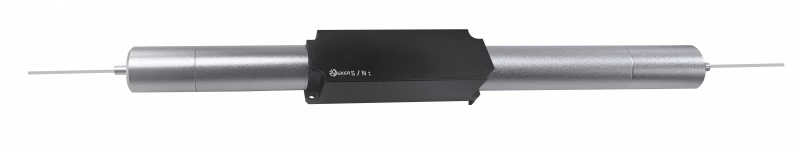

2um High Power Polarization Insensitive Isolator
Description
The Polarization Insensitive Isolator is characterized with low insertion loss, high isolation, high return loss and excellent environmental stability and reliability. It is specially designed for 2 μm polarization insensitive fiber amplifiers, fiber laser systems.
2um High Power Polarization Insensitive Isolator
Specifications |
|
|---|---|
| Type Of The Device: | Isolator |
| Operating Wavelength: | 1910, 2050 nm |
| Max Power: | 50 W |
| Min Isolation: | 25 dB |
| Center Wavelength (λc): | 1910, 2050 nm |
| Operating Wavelength Range: | λc ± 10 nm |
| Max. Polarization Dependent Loss, 23 ℃: | 0.2 dB |
| Min. Isolation, λc, 23 ℃, All Polarization States: | 25 dB |
| Max. Insertion Loss, λc, 23 ℃, All Polarization States: | 1.6 dB |
| Max. Average Optical Power: | 50 W |
| Max. Peak Power For Ns Pulse: | 10 kW |
Features
- Low insertion loss
- High isolation
- High return loss
- High environmental stability
Applications
- Fiber amplifiers
- Fiber lasers
- Laser optics instruments
- Metrology and inspection
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2024
Frequently Asked Questions
The Polarization Insensitive Isolator is designed with low insertion loss, high isolation, high return loss, and excellent environmental stability and reliability. It is specifically made for 2 μm polarization insensitive fiber amplifiers and fiber laser systems.
The isolator is ideal for fiber amplifiers, fiber lasers, laser optics instruments, and metrology and inspection applications.
The key features include low insertion loss, high isolation, high return loss, and high environmental stability.
The isolator is used to ensure reliable performance and maintain polarization in high precision applications such as fiber amplifiers, fiber lasers, and laser optics instruments.
