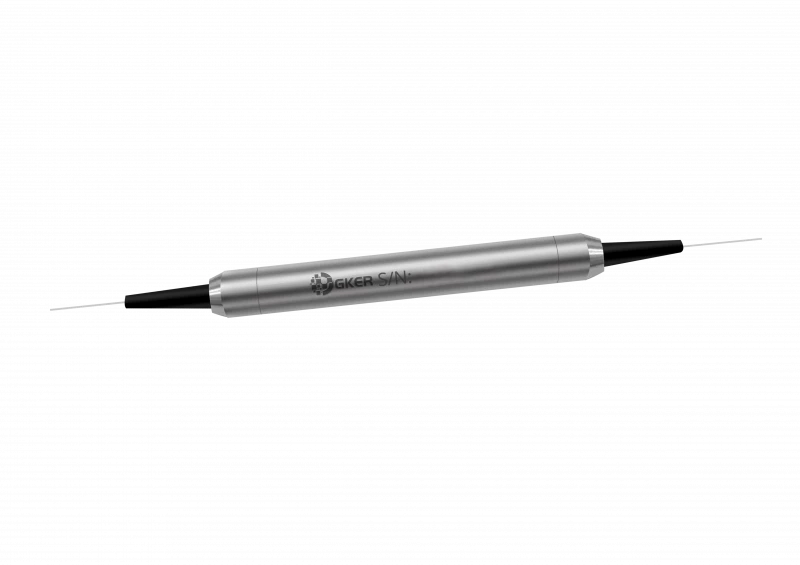

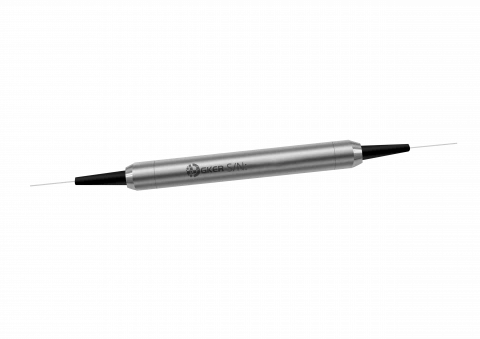

1064 nm In-Line Polarizer
Description
The GKER Photonics 1064 nm In-Line Polarizer from the GK-ILP Series is engineered for precise polarization control, ideal for high-speed communication systems and test instrumentation where superior polarization extinction ratio is essential. This device is designed to allow light of a specific polarization to pass through while effectively blocking the orthogonal polarization, ensuring optimal performance in demanding optical applications.
The polarizer offers an excellent extinction ratio and low insertion loss, with a typical extinction ratio of 30 dB and a maximum extinction ratio of 28 dB at a center wavelength of 1064 nm. It operates reliably across a wavelength range of ±30 nm from the center wavelength, handling continuous optical power up to 300 mW. The device features robust environmental stability, functioning within temperatures from -5°C to +70°C and storing from -40°C to +85°C.
The In-Line Polarizer is essential for applications requiring high polarization purity and minimal signal degradation, making it a critical component for sophisticated optical systems.
1064 nm In-Line Polarizer
Specifications |
|
|---|---|
| Center Wavelength: | 1064 nm |
| Operating Wavelength Range: | 06-1064nm |
| Typical Insertion Loss: | 0.4 dB |
| Min Return Loss: | 50 dB |
| Typical Extinction Ratio: | 30 dB |
| Max Optical Power (CW): | 300 mW |
| Center Wavelength (λc): | 1064 nm |
| Operating Wavelength Range: | λc ± 30 nm |
| Typ. Insertion Loss, 23 ℃: | 0.4 dB |
| Max. Insertion Loss: | 0.6 dB |
| Typ. Extinction Ratio, 23 ℃: | 30 dB |
| Min. Extinction Ratio, 23 ℃: | 28 dB |
| Max. Optical Power (Continuous Wave): | 300 mW |
| Min. Return Loss: | 50 dB |
| Operating Temperature: | - 5 to + 70 ℃ |
| Storage Temperature: | -40 to +85 ℃ |
Features
- High Polarization Extinction Ratio: Typical of 30 dB, with a minimum of 28 dB to ensure superior performance
- Low Insertion Loss: Typical insertion loss of 0.4 dB, maximum of 0.6 dB, minimizing signal attenuation
- High Optical Power Handling: Capable of managing continuous wave optical power up to 300 mW
- Excellent Environmental Stability: Operates reliably from -5°C to +70°C, with storage from -40°C to +85°C
- Wide Wavelength Range: Effective within ±30 nm of the 1064 nm center wavelength
Applications
- High-Speed Communication Systems: Enhances signal quality by improving polarization purity
- Test Instrumentation: Ideal for precise measurements requiring high extinction ratios
- Optical Amplifiers: Reduces polarization-dependent losses in amplifiers
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2024
Frequently Asked Questions
The center wavelength is 1064 nm.
The operating wavelength range is ±30 nm from the center wavelength.
The typical insertion loss is 0.4 dB.
The maximum insertion loss is 0.6 dB.
The typical extinction ratio is 30 dB.
The minimum extinction ratio is 28 dB.
The polarizer can handle up to 300 mW of continuous wave optical power.
The operating temperature range is -5°C to +70°C.
The storage temperature range is -40°C to +85°C.
Available connectors include FC/UPC, FC/APC, SC/UPC, SC/APC.
