1550 nm 80 MHz PM Fiber Acousto-Optic Modulator
Description

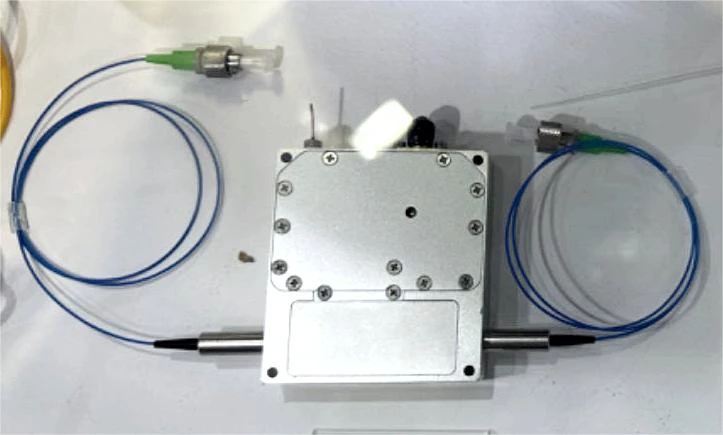

The CSRayzer IAOM-1550-80M-05-S-C3-PM1550-1-1-1-FA is a high-performance Acousto-Optic Modulator (AOM) designed for precision optical modulation applications. This modulator utilizes Tellurium Dioxide as the interaction material, optimized for the 1550 nm signal wavelength, making it ideal for telecom, laser systems, and research environments requiring precise control over light modulation. The device offers a high extinction ratio of 50 dB, ensuring minimal signal loss and excellent modulation depth.
Engineered for reliability, the AOM features a robust design capable of handling average optical power up to 0.5 W, with an insertion loss of just 2.5 dB, ensuring efficient operation in demanding conditions. The modulator supports an operating frequency of 80 MHz with exceptional frequency stability of ±30 ppm. It also includes a TTL modulation mode, powered by a +24V DC supply, ensuring easy integration into existing systems.
With a compact package dimension of 67 x 60 x 17.5 mm, the IAOM-1550-80M-05-S-C3-PM1550-1-1-1-FA is designed for space-constrained applications. The device is equipped with PM1550 fiber and an FC/APC connector, ensuring high polarization extinction and return loss, making it suitable for various optical networks and laser systems.
1550 nm 80 MHz PM Fiber Acousto-Optic Modulator
Specifications |
|
|---|---|
| Center Wavelength: | 1550 nm |
| Operational Wavelength Range: | 1520-1580nm |
| Acoustic Mode: | Longitudinal |
| Operating Frequency: | 80 MHz |
| Light Polarization: | Linear |
| Optical Power Density: | / KW/cm2 |
| Deflection Angle: | / mrad |
| Average Optical Power: | 0.5 W |
| Insertion Loss: | 2.5 dB |
| Ultrasonic Velocity: | 4200 m/s |
| Extinction Ratio: | 50 dB |
| Rise-Time/Fall-Time: | 30 ns |
| Interaction Material: | Tellurium dioxide |
| Signal Wavelength (λc): | 1550 nm |
| Polarization Extinction Ratio: | 2.5 dB |
| Return Loss: | 40 dB |
| Frequency: | 80 MHz |
| Frequency Stability: | ±30 ppm |
| Fiber Type: | PM1550 |
| Fiber Length: | 1 ± 0.1 m |
| Operating Temperature: | -20 to +60 ℃ |
| Operating Voltage: | +24VDC @ 280mA |
| Package Dimensions: | 67 x 60 x 17.5 mm |
Features
- Tellurium Dioxide Interaction Material: Ensures high modulation efficiency and stability at 1550 nm
- Wide Signal Wavelength Range: Operates efficiently within 1520 nm to 1580 nm, centered at 1550 nm
- High Extinction Ratio: Provides a typical extinction ratio of 50 dB, ensuring minimal signal loss
- Low Insertion Loss: Offers an insertion loss of 2.5 dB for efficient power utilization
- Precise Frequency Stability: Maintains stable operation with a frequency stability of ±30 ppm
- Compact Design: Small footprint with package dimensions of 67 x 60 x 17.5 mm, ideal for space-limited applications
- Polarization Maintaining Fiber: Utilizes PM1550 fiber for stable polarization and reduced signal degradation
- TTL Modulation Mode: Ensures easy integration with standard systems using +24V DC power supply
Applications
- Telecommunications: Ideal for modulating optical signals in advanced telecom networks
- Laser Systems: Suitable for precise control in laser modulation applications
- Optical Research: Essential for experimental setups requiring accurate optical modulation
