Unmounted Waveplates

Custom Optical Waveplates for Phase Retardation and Polarization Control
Sinoptix
Add to watch list
Custom Optical Waveplates for Phase Retardation and Polarization Control
Compare
Sinoptix offers high-precision custom optical waveplates, ideal for applications requiring phase retardation and polarization modification. Manufactured from premium materials such as N-BK7, HK9L, or quartz substrates, these waveplates ensure exceptional optical clarity and durability. With customizable dimensions and wavelengths, ...

Specifications
Waveplate Type: Zero Order, Multiple Order
Material: Quartz, N-BK7
Mounting: Mounted, Unmounted
Shape: Round, Square, Rectangle, Custom
Size: custom mm
Data Sheet
Inquire Price
Zero Order Waveplates - True Zero Order (TZO) and Effective Zero Order (ZO) - Alien Photonics
Alien Photonics
Add to watch list
Zero Order Waveplates - True Zero Order (TZO) and Effective Zero Order (ZO) - Alien Photonics
Compare
Zero Order Waveplates. Half and quarter single-plate waveplates rotate or convert polarization.  True Zero Order (ZO) Waveplate is single plate (if too thin can be bonded or glued to base) of true retardance of less than 1λ. Effective Zero Order (ZO) Waveplate construction involves construction of two ...

Specifications
Waveplate Type: Zero Order
Material: Quartz and MgF2, MgF2, Quartz
Mounting: Mounted, Unmounted
Shape: Round, Custom
Size: 7-30 mm
Data Sheet
Inquire Price
Zero Order Waveplate 10mm-Z-L/4-248nm
Tower Optical Corporation
Add to watch list
Zero Order Waveplate 10mm-Z-L/4-248nm
Compare
Tower’s 10mm Zero order waveplates provide users with a high performance Crystal Quartz retarder with a clear aperture of 8mm. These waveplates are air spaced, having a stainless steel spacer between two crystal quartz plates that form the zero order capability. Zero order waveplates are far less sensitive to temperature ...

Specifications
Waveplate Type: Zero Order
Material: Quartz
Mounting: Mounted, Unmounted
Shape: Round
Size: 10 mm
Data Sheet
Inquire Price
Achromatic Waveplate from CRYSMIT
CRYSMIT OPTICS
Add to watch list
Achromatic Waveplate from CRYSMIT
Compare
Achromatic wave plate is a special kind of Zero Order wave plate, comprised of two wave plates made by two different birefringent materials (e.g. crystal quartz and magnesium fluoride). The existence of chromatic dispersion greatly affects the refractive indices of materials. The two birefringent materials which construct the ...

Specifications
Waveplate Type: Achromatic
Material: Quartz and MgF2
Mounting: Unmounted
Shape: Round
Size: 12.7 mm
Data Sheet
Inquire Price
Single Plate High Power Waveplate
Union Optic
Add to watch list
Single Plate High Power Waveplate
Compare
Union Optic can offer single plate high power waveplate now, due to our unique technology, we can make thickness down to 20 microns. Thanks to her high damage threshold, single plate high power waveplate is normally used in high power application.  High Damage ThresholdBetter Temperature BandwidthWide Wavelength ...

Specifications
Waveplate Type: Zero Order
Material: Quartz
Mounting: Mounted, Unmounted
Shape: Round, Square, Rectangle, Custom
Size: 25.4 mm
Data Sheet
Inquire Price
Quartz Waveplate --ture zero order/ zero order/ mulitple order
Photonchina
Add to watch list
Quartz Waveplate --ture zero order/ zero order/ mulitple order
Compare
Photonchina’s waveplates fabrication starts from quartz materials cutting with their axes oriented within a few arcminutes before being polished to a laser-quality finish, arcsecond parallelism, and <λ/10 wavefront. Their thickness tolerance is a only small fraction of a micron. To verify retardation tolerances, ...

Specifications
Waveplate Type: Zero Order, Multiple Order, Achromatic
Material: Quartz and MgF2, MgF2, Quartz, N-BK7, Custom
Mounting: Mounted, Unmounted
Shape: Round, Square, Rectangle, Custom
Size: 1-80 mm
Data Sheet
Inquire Price
Quartz Waveplate -- Achromatic/Dual Wavelength/High Power Waveplate
Photonchina
Add to watch list
Quartz Waveplate -- Achromatic/Dual Wavelength/High Power Waveplate
Compare
Achromatic Waveplate   Achromatic waveplate is made from two different substrate materials such as crystal quartz and magnesium fluoride. For the single material,waveplate’s working wavelength is very limited because of the dispersion of the material. But Achromatic Waveplate uses two different kinds of materials,with the ...

Specifications
Waveplate Type: Zero Order, Multiple Order, Achromatic
Material: Quartz and MgF2, MgF2, Quartz, N-BK7, Custom
Mounting: Mounted, Unmounted
Shape: Round, Square, Rectangle, Custom
Size: 1-80mm mm
Data Sheet
Inquire Price
Quartz Waveplate -- Octadic/ Quarter/Half Waveplate--Circular/Quadratic Waveplate
Photonchina
Add to watch list
Quartz Waveplate -- Octadic/ Quarter/Half Waveplate--Circular/Quadratic Waveplate
Compare
Waveplate is an optic in which the polished faces contain the optical axis. All light incidents normal to the surface are composed of components polarized parallel and perpendicular to the axis. In such a device, light polarized parallel to the axis will propagate slower than light polarized perpendicular to the axis. As the light ...

Specifications
Waveplate Type: Zero Order, Multiple Order, Achromatic
Material: Quartz and MgF2, MgF2, Quartz, Polymer, Mica, N-BK7, Custom, Not Specified
Mounting: Mounted, Unmounted
Shape: Round, Square, Rectangle, Custom
Size: custom mm
Data Sheet
Inquire Price
Middle Infrared Zero Order Waveplate
Union Optic
Add to watch list
Middle Infrared Zero Order Waveplate
Compare
Middle Infrared zero order waveplate is constructed by two Magnesium Fluoride (MgF2) plates with their fast axis crossed, the two plates are constructed by optically contacted method, the optical path is epoxy free. The difference in thickness between the two plates determines the retardance. Middle Infrared zero order waveplates is ...

Specifications
Waveplate Type: Zero Order
Material: MgF2
Mounting: Mounted, Unmounted
Shape: Round, Square, Rectangle, Custom
Size: 25.4 mm
Data Sheet
Inquire Price
Telecom Waveplate
Union Optic
Add to watch list
Telecom Waveplate
Compare
Compared with cemented true zero order waveplate, telecom waveplate is only one quartz plate, it is mainly used in fiber communication. Telecom waveplates are thin & compact waveplates specifically designed to meet the demanding requirements of fiber communication component. The half-wave plate can be used for rotating the ...

Specifications
Waveplate Type: Zero Order
Material: Quartz
Mounting: Mounted, Unmounted
Shape: Round, Square, Rectangle, Custom
Size: 25.4 mm
Data Sheet
Inquire Price
Dual Wavelength Waveplate
Union Optic
Add to watch list
Dual Wavelength Waveplate
Compare
This waveplate is a special kind of multi order waveplate. Dual wavelength waveplate is designed to be used in dual wavelength setups, for example, it can be operated as a quarter waveplate @1064nm and as a half waveplate @532nm at the same time. It\'s always used to manage the states of polarization of laser beams to obtain maximum ...

Specifications
Waveplate Type: Multiple Order
Material: Quartz
Mounting: Mounted, Unmounted
Shape: Round, Square, Rectangle, Custom
Size: 25.4 mm
Data Sheet
Inquire Price

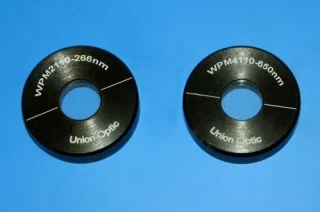

Multi Order Waveplate
Union Optic
Add to watch list
Multi Order Waveplate
Compare
Multiple order waveplate means the retardance of a light path will undergo a certain number of full wavelength shifts in addition to the fractional design retardance. The thickness of multi order waveplate is always around 0.5mm. Compared with zero order waveplate, multi order waveplate is more sensitive to wavelength and temperature ...

Specifications
Waveplate Type: Multiple Order
Material: Quartz
Mounting: Mounted, Unmounted
Shape: Round, Square, Rectangle, Custom
Size: 25.4 mm
Data Sheet
Inquire Price

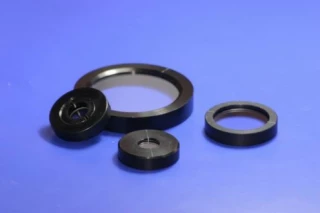

True Zero Order Waveplate
Union Optic
Add to watch list
True Zero Order Waveplate
Compare
The thickness of a true zero order quartz plate is very thin, it is very easily damaged. In order to solve this problem, we can cement the thin quartz plate on a BK7 substrate to increase the strength. Standard Thickness: 1.1±0.2mmEpoxy CementedModerate Damage ThresholdBetter Temperature BandwidthWide Wavelength BandwidthGood ...

Specifications
Waveplate Type: Zero Order
Material: Quartz
Mounting: Mounted, Unmounted
Shape: Round, Square, Rectangle, Custom
Size: 25.4 mm
Data Sheet
Inquire Price

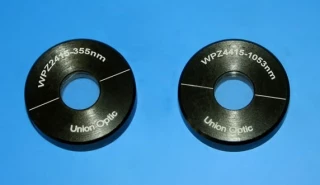

Air Spaced Zero Order Waveplate
Union Optic
Add to watch list
Air Spaced Zero Order Waveplate
Compare
Air spaced zero order waveplate is constructed by two quartz plates installed in a mount, to form a air gap between the two quartz plates. The difference in thickness between the two plates determines the retardance. Zero order waveplates offer a substantially lower dependence on temperature and wavelength change than multi-order ...

Specifications
Waveplate Type: Zero Order
Material: Quartz
Mounting: Mounted, Unmounted
Shape: Round, Square, Rectangle, Custom
Size: 25.4 mm
Data Sheet
Inquire Price

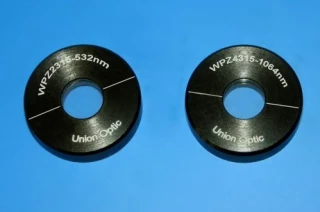

Optically Contacted Zero Order Waveplate
Union Optic
Add to watch list
Optically Contacted Zero Order Waveplate
Compare
Optically Contacted zero order waveplate is constructed by two quartz plates with their fast axis crossed, the two plates are constructed by optically contacted method, the optical path is epoxy free. The difference in thickness between the two plates determines the retardance. Zero order waveplates offer a substantially lower ...

Specifications
Waveplate Type: Zero Order
Material: Quartz
Mounting: Mounted, Unmounted
Shape: Round, Square, Rectangle, Custom
Size: 25.4 mm
Data Sheet
Inquire Price

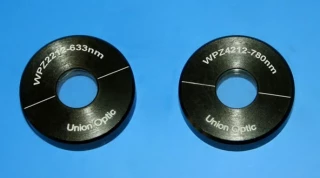

Cemented Zero Order Waveplate
Union Optic
Add to watch list
Cemented Zero Order Waveplate
Compare
Cemented zero order waveplate is constructed by two quartz plates with their fast axis crossed, the two plates are cemented by UV epoxy. The difference in thickness between the two plates determines the retardance. Zero order waveplates offer a substantially lower dependence on temperature and wavelength change than multi-order ...

Specifications
Waveplate Type: Zero Order
Material: Quartz
Mounting: Mounted, Unmounted
Shape: Round, Square, Rectangle, Custom
Size: 25.4 mm
Data Sheet
Inquire Price
Crystal Quartz Zero Order Waveplates
S & R Optic GmbH
Add to watch list
Crystal Quartz Zero Order Waveplates
Compare
Material: Quartz Single CrystalUsable wavelength range: 193nm – 2000nmRetardation: λ/4 λ/2 (λ/8 and other values)Retardation Tolerance: λ/200 - λ/500 at specific wavelengthDimensions: 2 mm - 50 mmParallelism: <1 arcsecSurface Quality: 10-5 scratch-digTypical Absorption: ...

Specifications
Waveplate Type: Zero Order
Material: Quartz
Mounting: Mounted, Unmounted
Shape: Round, Custom
Size: 20 mm
Data Sheet
Inquire Price
Crystal Quartz Multiple Order Waveplates
S & R Optic GmbH
Add to watch list
Crystal Quartz Multiple Order Waveplates
Compare
Quartz Waveplates / Retarders – Multiple OrderMaterial: Quartz SingleCrystalUsable wavelength range: 193nm – 2000nmRetardation: λ/4 λ/2 (λ/8 and other values)Retardation Tolerance: λ/200 λ/500 at specific wavelengthDimensions: 2mm - 50mmParallelism: <1 arcsecSurface Quality: 10-5 ...

Specifications
Waveplate Type: Multiple Order
Material: Quartz
Mounting: Mounted, Unmounted
Shape: Round, Custom
Size: 20 mm
Data Sheet
Inquire Price
Uncemented Bare Mica Waveplates Zero Order
S & R Optic GmbH
Add to watch list
Uncemented Bare Mica Waveplates Zero Order
Compare
Uncemented bare mica waveplates are recommended for higher powerapplications. Application areas are imaging systems, metrology, materialprocessing, medical technology, lasers, detection schemes, research &development and special lighting technologies.Mica waveplates are available at any specified wavelength from 350 to ...

Specifications
Waveplate Type: Zero Order
Material: Mica
Mounting: Mounted, Unmounted
Shape: Round, Custom
Size: 20 mm
Data Sheet
Inquire Price
Zero Order Laser Line Mica Waveplate
S & R Optic GmbH
Add to watch list
Zero Order Laser Line Mica Waveplate
Compare
Mica waveplates (retarders) are recommended for low power applications. Application areas are imaging systems, stress analyzers, helium neon lasers, detection schemes, research & development and special lighting technologies. Mica waveplates (retarders) are AR coatedor uncoated available at any ...

Specifications
Waveplate Type: Zero Order
Material: Mica, N-BK7
Mounting: Mounted, Unmounted
Shape: Round, Custom
Size: 20 mm
Data Sheet
Inquire Price
On FindLight marketplace you will find 28 different Unmounted Waveplates from suppliers around the world. With just a few clicks you can compare different Unmounted Waveplates and get accurate price quotes based on your needs and quantity required. Note that some wholesale suppliers may offer discounts for large quantities. From any product page you can directly contact any vendor within seconds.
