Precession Elephant III Scan Head for High-Precision Drilling and Cutting
Description

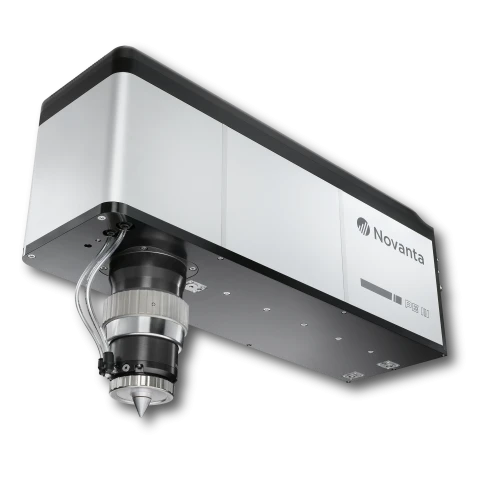

The Precession Elephant III (PE III) scan head is a cutting-edge precision multi-axis scan head, designed for high-precision laser drilling, cutting, and micromachining applications. Developed by Novanta through their globally recognized brands—ARGES, Cambridge Technology, Laser Quantum, and Synrad—this advanced scan head is engineered to deliver exceptional performance and reliability in 24/7 production environments. By combining powerful lasers with intelligent beam steering and software controls, the PE III ensures high precision in demanding applications across various industries.
This next-generation scan head is built for versatility and can handle complex geometries with a variety of taper angles and shapes. It produces perfectly round, elliptical, square, or custom-shaped micro-holes, making it ideal for fine material processing. It supports major ultra-short pulsed laser sources and offers enhanced process control, power handling, and ease of setup for continuous production operations.
Precession Elephant III Scan Head for High-Precision Drilling and Cutting
Specifications |
|
|---|---|
| Input Aperture: | - mm |
| Wavelength: | 527 nm (green), 532 nm (green), 1030 - 1080 nm, Other (see Data Sheet) |
| Max Scan Rate: | - m/s |
| Focal Length: | 60 mm |
| Work Area X: | - mm |
| Work Area Y: | - mm |
| Z Tolerance: | - mm |
| Max Laser Power: | - W |
| Weight: | - kg |
| Options: | Water Cooling |
| Intended Application: | Laser Cutting, Laser Dicing, Laser Micromachining, Other |
| Wavelength Range: | 515-540 nm, 1020-1080 nm |
| Maximum Pulse Energy / Shortest Pulse Length: | VIS: 250 µJ @ 250 fs, IR: 500 µJ @ 250 fs |
| Polarization (Input / Output): | Linear / Circular |
Features
- Precision Multi-Axis Scan Head: Offers 5 axes of movement (X, Y, Z coordinates and two beam inclination angles) for maximum flexibility in complex laser drilling and cutting.
- Wavelength Range: Available in both green (VIS: 515-540 nm) and near-infrared (NIR: 1020-1080 nm) wavelengths, making it versatile for different applications.
- Advanced Precession Scanning: Operates at a precession frequency of 300-650 Hz (equivalent to 18,000-39,000 rpm) for high-speed, high-precision micromachining.
- Compatibility: Supports all major ultra-short pulsed laser sources and is pre-adjusted for simplified setup and calibration.
- Process Monitoring: Integrated through-the-lens vision module with built-in illumination, along with two industrial cameras for beam alignment and monitoring during production.
- Polarization Control: Delivers best-in-class processing results through automatic polarization control.
- Cooling and Purging: Cooled by water with nitrogen or other gases used for purging to maintain lens integrity and performance.
- Stationary or Moveable Mounting: Offers flexibility in installation, with options for both stationary and movable mounts.
Applications
The Precession Elephant III scan head is ideal for applications requiring extreme precision in micromachining, micro-drilling, and fine material processing. Its precision multi-axis capabilities enable the production of intricate shapes and geometries, making it suitable for industries like electronics, medical device manufacturing, and aerospace. The advanced precession scanning technology allows for the creation of highly accurate and custom-shaped micro-holes, which are essential for components that demand strict tolerances and high-quality finishes.
Its ability to work seamlessly with various laser sources and wavelengths further enhances its versatility, while its process control features ensure optimal performance and minimal downtime, making it an ideal solution for continuous, high-precision production environments. Whether used for laser cutting, drilling, or micromachining, the PE III scan head sets the standard for precision and reliability.
