Page 6 - Fiber Isolators & Circulators

The PMIS-1064 Polarization-Maintaining Isolator by Ascentta, Inc. is a high-quality, garnet, optical isolator designed to provide excellent performance in polarization-maintaining (PM) fiber systems. With its advanced design and precise wavelength operation at 1064nm, this isolator ensures efficient isolation and low insertion ...

Specifications

Type Of The Device: Isolator
Operating Wavelength: 1064 nm
Max Power: 0.3 W
Min Isolation: 28 dB
Type Of The Device: Isolator
Ascentta, Inc. offers a range of compact and high-performance fiber optic circulators designed to transmit signals from one port to another simultaneously. These three-port circulators are widely used in optical sensing systems with fiber gratings and other reflective components. Ascentta also manufactures multiport circulator ...

Specifications

Type Of The Device: Circulator
Operating Wavelength: 532 nm
Max Power: 0.15 W
Min Isolation: 21 dB
Insertion Loss (All SOP) Max.: 1.8 dB
Ascentta, Inc. offers a range of high-performance fiber optic circulators designed for efficient signal transmission. Their three-port circulators transmit signals from port 1 to port 2 and from port 2 to port 3 simultaneously. These compact devices are widely used in optical sensing systems with fiber gratings and other reflective ...

Specifications

Type Of The Device: Circulator
Operating Wavelength: 635 nm
Max Power: 0.1 W
Min Isolation: 23 dB
Insertion Loss (All SOP) Max.: 2.3 dB

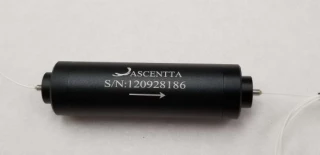

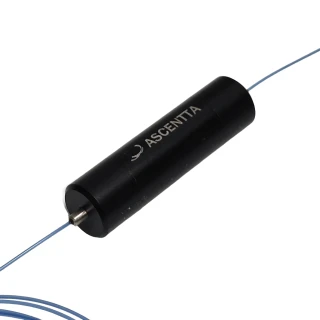

The VIS Visible/IR Optical Isolator by Ascentta, Inc. is a versatile optical component designed for efficient signal isolation in a wide range of applications. This isolator operates in the visible and infrared (IR) spectrum, covering wavelengths such as 532nm, 635nm, 650nm, 780nm, 850nm, 980nm, 1030nm, and 1060nm. With its ...

Specifications

Type Of The Device: Isolator
Operating Wavelength: 850 nm
Max Power: 0.15 W
Min Isolation: 24 dB
Insertion Loss (All SOP) Max.: 1.5 dB
The PMVCIR 780nm Polarization-Maintaining Optical Circulator by Ascentta, Inc. is a compact and high-performance three-port fiber optic circulator designed for polarization-maintaining applications. It transmits signals from port 1 to port 2 and from port 2 to port 3 simultaneously, making it ideal for use in sensing and ...

Specifications

Type Of The Device: Circulator
Operating Wavelength: 780 nm
Max Power: 0.25 W
Min Isolation: 21 dB
Insertion Loss (Fast Axis Block) (1→2, Or 2→3): 1.8 dB
The MMVIS-850 Multimode Visible/IR Isolator by Ascentta, Inc. is a versatile optical isolator designed for multimode applications. It provides efficient isolation and protection for optical signals in the 850nm wavelength range. Ascentta, Inc. offers a wide range of isolators, including single-mode, multimode, and ...

Specifications

Type Of The Device: Isolator
Operating Wavelength: 850 nm
Max Power: 1 W
Min Isolation: 20 dB
Insertion Loss (ALL SOP): 1.2 dB

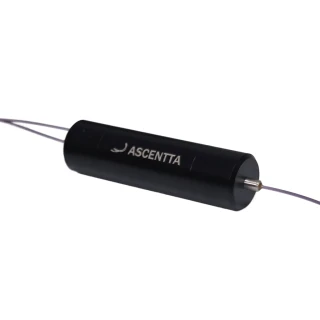

Ascentta, Inc. offers a compact and high-performance three-port fiber optic circulator designed specifically for polarization-maintaining (PM) applications. This optical device efficiently transmits signals from port 1 to port 2 and from port 2 to port 3 simultaneously. It is ideal for use in optic sensing systems with fiber ...

Specifications

Type Of The Device: Circulator
Operating Wavelength: 405 nm
Max Power: 0.03 W
Min Isolation: 20 dB
Insertion Loss (Fast Axis Block) (1→2, Or 2→3): 2.0 dB

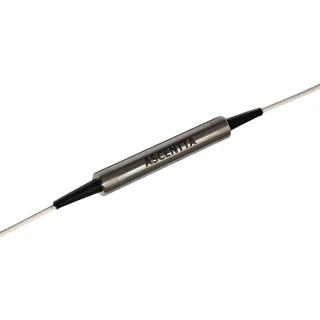

Ascentta, Inc. offers a wide range of optical isolators, including single-mode, multimode, and polarization-maintaining (PM) isolators. Our isolators are available in both inline and free space configurations, providing exceptional performance in various applications. With options for different wavelengths and customization, our ...

Specifications

Type Of The Device: Isolator
Operating Wavelength: 1450 nm
Max Power: 0.1 W
Min Isolation: 62 dB
Insertion Loss (23℃, 1450-1650nm All SOP): 1.1 dB

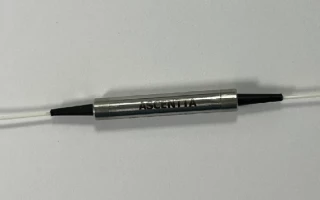

Ascentta, Inc. offers a wide range of isolators designed to meet various application requirements. Our isolators are available in single mode, multimode, and polarization-maintaining (PM) configurations. The Polarization Maintaining (PM) isolator comes in single stage or dual stage models to accommodate customer's need for ...

Specifications

Type Of The Device: Isolator
Operating Wavelength: 1310 nm
Max Power: 0.3 W
Min Isolation: 30 dB
Insertion Loss: 0.4-0.5 dB
Ascentta offers a comprehensive range of isolators designed for various applications. We provide single-mode, multimode, and polarization-maintaining (PM) isolators in both inline and free space configurations. Ascentta Polarization Insensitive C+L Band Fiber Isolator operates in a wide range of wavelengths, covering 1530nm to ...

Specifications

Type Of The Device: Isolator
Operating Wavelength: 1530 nm
Max Power: 0.3 W
Min Isolation: 28 dB
Insertion Loss (All SOP): 0.4-0.6 dB
CSRayzer offers different clear apertures and wavelength range free space rotator and isolator, also called Faraday rotator and isolator, which is a device that changes the polarization state of light based on the Faraday magneto-optical effect. It is available with different clear aperture sizes, including diameters of 3, 5, 6, 7, 8 ...

Specifications

Type Of The Device: Isolator
Operating Wavelength: 1064 nm
Max Power: 50 W
Min Isolation: 30 dB
Clear Aperture: 6 Or Specify mm
The 4-Port Mini Fiber Circulator is a compact, high performance lightwave component that routes incoming signals from Port 1 to Port 2, Port 2 to Port 3, Port 3 to Port 4. The component provides high isolation, low insertion loss, low PDL, low PMD and excellent environmental stability. It is widely used in combination ...

Specifications

Type Of The Device: Circulator
Operating Wavelength: 1310 nm
Max Power: 300 W
Min Isolation: 38 dB
Center Wavelength (λc): 1310, 1550 nm
The Polarization Sensitive Isolator is designed and manufactured according to Telcordia standard. The unique manufacturing process and optical path epoxy-free design enhance the device high power handling capability. The optical isolator is characterized with high performance, high reliability and low cost. It has been widely used in ...

Specifications

Type Of The Device: Isolator
Operating Wavelength: 1064 nm
Max Power: 0.3 W
Min Isolation: 32 dB
Center Wavelength (λc): 1064 nm

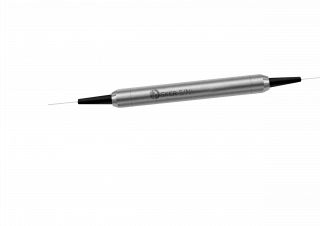

The 1064 nm Polarization Maintaining Isolator is a micro optics device with low insertion loss, high isolation, high return loss, high extinction ratio and excellent environmental stability and reliability. This fiber isolator is ideal for amplifiers, fiber lasers and test instrument applications.

Specifications

Type Of The Device: Isolator
Operating Wavelength: 1064 nm
Max Power: 0.3 W
Min Isolation: 32 dB
Center Wavelength (λc): 1064 nm
The High Power Polarization Maintaining Tap Isolator is characterized with low insertion loss, high isolation, high power handling, high return loss, excellent environmental stability and reliability. It is ideal for fiber laser and instrumentation applications.

Specifications

Type Of The Device: Isolator
Operating Wavelength: 1030 nm
Max Power: 10 W
Min Isolation: 25 dB
Center Wavelength (λc): 1030, 1064 nm
The Polarization Insensitive Isolator is characterized with low insertion loss, high isolation, high return loss and excellent environmental stability and reliability. It is specially designed for 2 μm polarization insensitive fiber amplifiers, fiber laser systems.

Specifications

Type Of The Device: Isolator
Operating Wavelength: 1910 nm
Max Power: 50 W
Min Isolation: 25 dB
Center Wavelength (λc): 1910, 2050 nm

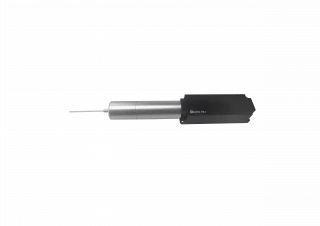

This Fiber to Free Space High Power Isolator is characterized with low insertion loss, high isolation high power handling, high return loss, excellent environmental stability and reliability. It is ideal for fiber laser and instrumentation applications.

Specifications

Type Of The Device: Isolator
Operating Wavelength: 2000 nm
Max Power: 100 W
Min Isolation: 25 dB
Center Wavelength (λc): 2000, specified nm
The Polarization Maintaining Tap Isolator combines a tap coupler and polarization sensitive isolator into a single compact package. It has high extinction ratio and very low insertion loss. The PM Tap Isolator is ideal for fiber amplifier and fiber optic system where signal monitoring is required.

Specifications

Type Of The Device: Isolator
Operating Wavelength: 1064 nm
Max Power: 0.3 W
Min Isolation: 35 dB
Center Wavelength (λc): 1064 nm

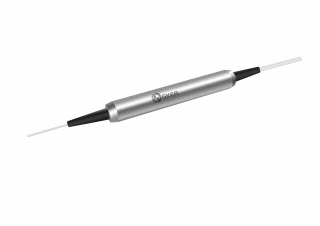

The GK-PMIWDM Series from GKER Photonics Co., Ltd. is a cutting-edge hybrid device that integrates a Polarization Maintaining Isolator and a Wavelength Division Multiplexer (WDM) into a single, compact package. This hybrid component is designed to offer a cost-effective solution for fiber amplifier applications by combining signal ...

Specifications

Type Of The Device: Isolator
Operating Wavelength: 1530 nm
Max Power: 300 W
Min Isolation: 30 dB
Pass Band Signal Wavelength Range: 1530 - 1580 nm
The GKER Photonics GK-PMIWDM Series is a sophisticated hybrid device that seamlessly integrates a polarization maintaining isolator with a wavelength division multiplexer (WDM) filter into a compact and cost-effective package. This advanced device is engineered to offer superior performance in managing signal and pump wavelengths, ...

Specifications

Type Of The Device: Isolator
Operating Wavelength: 1530 nm
Max Power: 300 W
Min Isolation: 30 dB
Pass Band Signal Wavelength Range: 1530 - 1580 nm
